Adjust Pickup Float Springs (MegaWide™ HC2 Pickup)

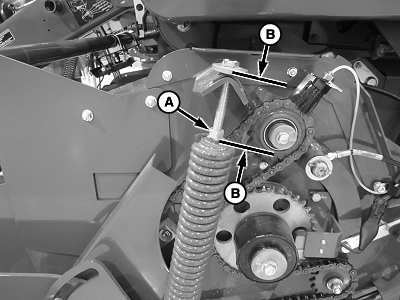

E83409
E83409-UN-07JUN17

Left-Hand Side

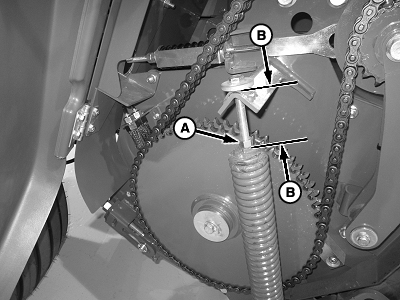

E83410
E83410-UN-07JUN17

Right-Hand Side

A - Lock Nut

B - Float Spring Setting Dimension

Dimension (B) is an initial float spring setting for pickup tooth-to-ground clearance of 25—50 mm (1—2 in) with wheel spindles in the normal position. (See Wheel Spindle Positions in Preparing the Baler section.)

More spring force is needed if:

  • Operating at pickup tooth-to-ground clearance above 50 mm (2 in) with spindles in the normal position.

Less spring force is needed if:

  • The pickup does not lower to desired operating height.
  • The pickup bounces too much and leaves crop.

  1. Loosen lock nut (A).

  2. Tighten screw into spring plug until dimension (B), between spring plug casting and anchor is attained. Dimension (B) is intended for pickup tooth ground clearance of 25—50 mm (1—2 in) with wheel spindles in normal position.

    DIMENSION (B)

    450M (Both Sides)

    75 mm (3 in)

  3. Tighten lock nut (A).

SF04007,0000EF2-19-20170914
