Adjust Auger Scrapers (MegaWide™ HC2 Feed System)

1.

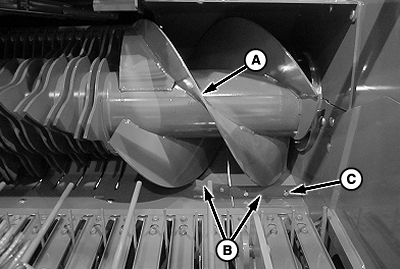

   E83405-UN-07JUN17

   Left-Hand Side Shown

   A - Auger

   B - Scraper (2 each side)

   C - Nut (2 each scraper)

   Loosen nuts (C).

---




2. Position scraper (B) to the auger (A) according to specifications at closest point. To check clearance, rotate the auger.

   Scraper-to-Auger	Clearance (Minimum)	1 mm (1/32 in)

3. Tighten nuts.

4. Repeat procedure on the opposite side.
