Remove and Install Net Wrap V-Belt

1. Lock the gate.

2. Start the tractor and raise the tension arm fully using the tractor hydraulics.

3. Turn the tractor key to the off position and remove key.

4. Disconnect monitor-controller power plug from the tractor convenience outlet.

5. Open net wrap cover.

6. To help support the weight of the roll, put a support under the drive roll.

7.
   E83150-UN-22MAY17

   Left-Hand Side

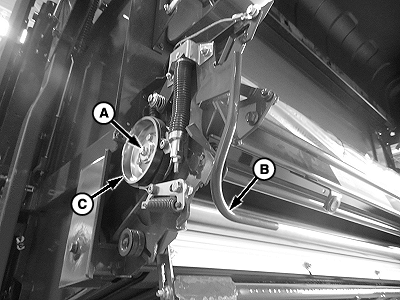

   A - Cap Screw and Washer

   B - Brake Lever

   C - Sheave

   Raise brake lever (B) and place on tab.

---




8. Remove cap screw and washer (A) and sheave (C).

9.
   E62348-UN-05APR12

   Left-Hand Side


   E62349-UN-05APR12

   Right-Hand Side

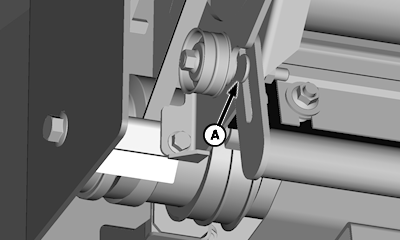

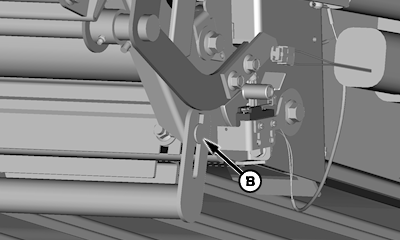

   A - Carriage Bolt

   B - Carriage Bolt

   Lower the net pan by removing bolts (A and B) on both sides of the net attachment.

---




10.
    E83407-UN-07JUN17

    Left-Hand Side


    E62356-UN-05APR12

    Right-Hand Side

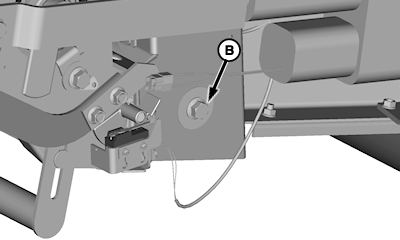

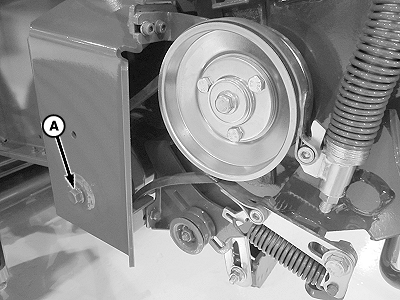

    A - Cap Screw

    B - Cap Screw

    Remove cap screw (A).

---




11. Loosen cap screw (B) until roll on the left-hand side drops enough to remove the v-belt.

12. Replace v-belt and install in reverse of removal using the following special instructions:

    • Check and adjust the net wrap v-belt. (See Check and Adjust Net Wrap V-Belt Idler Tension in this section.)
    • Check net pan pressure. (See Check and Adjust Net Pan Pressure in this section.)
