Every 100 Hours
L Gear Case
Do not over-fill gear case. Overheating and oil leakage can occur.

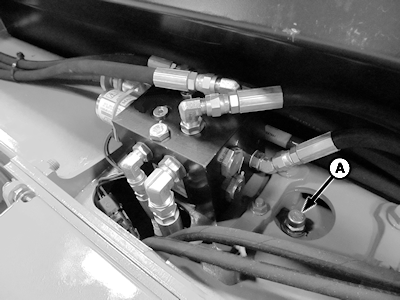

E61068-UN-16MAR12
A - Dipstick
Check level of lubricant with dipstick (A). Lubricant must fall between grooves on the dipstick.Refill as necessary using SAE 85-140 API GL-5 gear lubricant. Drain and refill gear case once each season.
| Gear Case | Capacity | 1.2 L (1.25 qt) |
Tighten dipstick to specification.
| Dipstick | Torque | 29 ± 3 N·m (21 ± 2 lb·ft) |
T Gear Case (HC2)
Do not over-fill gear case. Overheating and oil leakage can occur.
E82756-UN-30MAY17
T Gear Case (HC2)
A - Breather-Fill Plug
B - Level Plug
C - Drain Plug
Check lubricant level at plug (B).
Remove drain plug (C).
Remove breather-fill plug (A).
Refill as necessary using SAE 85-140 API GL-5 gear lubricant. Drain and refill gear case once each season.
| T Gear Case—Capacity | Capacity | 1.35 L (1.427 qt) |
Install breather-fill plug (A). Tighten to specification.
| Breather-Fill Plug | Torque | 30 N•m (22 lb·ft) |
|
SF04007,0000EF8-19-20170914 |
