Operate the Drop Floor—450M Only (If Equipped)

1. Only operate the baler with the drop floor in the raised position, unless unplugging.


   E83327-UN-05JUN17

   Select the drop floor UPDN function icon (A).

---




2. To raise or lower the drop floor, operate the pickup SCV.

3.

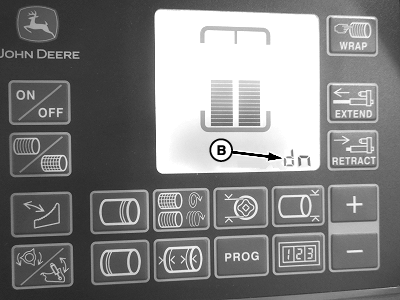

   E83328-UN-05JUN17


   E83329-UN-05JUN17

   A - “up”—Raised Position

   B - “dn”—Lowered Position

   When the floor is raised, the display shows “up”.

---




4. When the floor is lowered, the display shows “dn”.

5. To return to the main baling screen, press UPDN function key.

   If the drop floor is in the lowered position and the operator returns to the home screen a “d” is displayed next to the bale diameter indicating the floor is lowered. If the PTO is engaged an alarm sounds.

   After the drop floor is raised and returning to the main baling screen, the pickup can raise slightly. Monitor frequently and lower pickup when necessary. To help the pickup follow the field terrain, it is recommended to operate the pickup SCV in the float setting.
