First 50 Hours

Gear Case

1. Driveline is removed for illustration purposes.


   E57911-UN-25AUG09

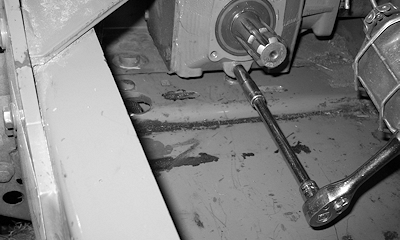

   Removing Drain Plug

   Check level of lubricant with dipstick. Lubricant must fall between grooves on dipstick.

---




2. Refill as necessary using SAE 85-140 API GL-5 gear lubricant. Drain and refill gear case once each season.

   Gear Case	Capacity	1.2 L (1.25 qt)

   Do not over-fill gear case. Overheating and oil leakage can occur.

3. Drain and refill gear case after the first 50 hours.

4. Tighten dipstick to specification.

   Dipstick	Torque	29 ± 3 N·m (21 ± 2 lb·ft)

T-Gear Case (HC2 only)

1.
   E82756-UN-30MAY17

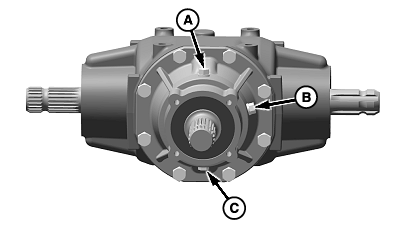

   T Gear Case (HC2 only)

   A - Breather-Fill Plug

   B - Level Plug

   C - Drain Plug

   Check the lubricant level at plug (B).

---




2. Remove the drain plug (C) if necessary.

3. Remove the breather-fill plug (A).

4. Refill as necessary using SAE 85-140 API GL-5 gear lubricant. Drain and refill gear case once each season.

   T Gear Case (HC2)	Capacity	1.35 L (1.42 qt)

5. Install plug (A) and tighten to specification.

   Breather-Fill Plug	Torque	30 N•m (22 lb·ft)
