Open and Close Net Wrap Cover

  1. Be sure that the PTO is disengaged, tractor engine is shutoff, and the monitor-controller power plug is disconnected from the tractor convenience outlet before opening cover.

    Cover is spring loaded and moves up quickly when released.

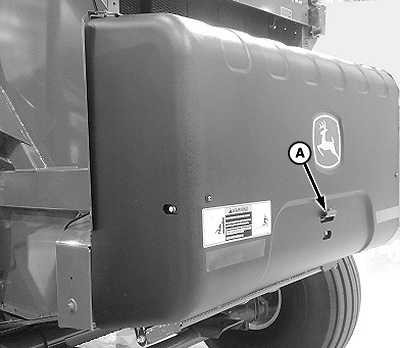

    E84112
    E84112-UN-21AUG17

    A - Handle

    Pull rearward on handle (A) and raise the cover.


  2. To close, pull cover down and push shut.

SF04007,0000F37-19-20170821
