Release Net Wrap Feed Roll Brake

The brake release disengages the net feed rolls. Release the brake when threading net wrap or servicing the net wrap unit.

1.

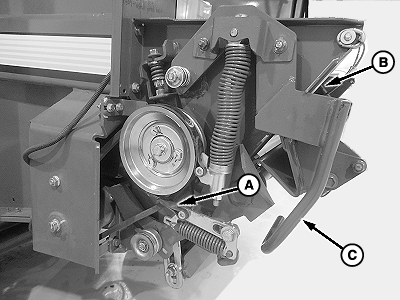

   E83135-UN-18MAY17

   A - Brake Band

   B - Latch

   C - Brake Lever

   Disengage tractor PTO, shut off the tractor engine, and disconnect the monitor-controller power plug from the tractor convenience outlet.

---




2. Open the net wrap cover.

3. To disengage roller brake band (B), pull lever (C) out and up and rest on latch (B) .

4. To engage the net wrap brake, return lever (C) to the engaged position. Check that the band (B) contacts belt pulley.

5. Close the net wrap cover.

6. Reconnect the monitor-controller power plug to the tractor convenience outlet.
