Adjust Belt Tracking

1. Check belt tracking before making any belt tracking adjustments.

   If belts are new and have not been used, add oil dry to simulate crop dust and allow belts to track freely.

   Check belt tracking with PTO engaged and tractor at lowest rpm. To apply tension to the belts while checking, hold the tractor hydraulic lever in the gate closing position.

   Light contact with belt guides is acceptable, but belts must not curl against guide straps.

   If adjustment is needed, slack belts by doing the following procedure:

   1. Raise gate fully so tension arm is against stop.

   2. Lower gate slowly until belts are slack.

   3. Lock the gate.

   4. Shut off tractor and remove key.

2.
   E54427-UN-17OCT05

   Without Cover-Edge™ Net Wrap

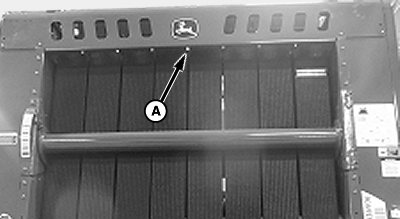

   A - Cap Screw

   Loosen cap screw (A) and adjust number 8 roll in the slot with small movements. To observe tracking between adjustments, let the baler run at least 30—40 seconds.

---




3. Check clearance between washer (B) and guide (C) before adjusting belt tracking. (See Check and Adjust Lower Net Wrap Guide in this section.)

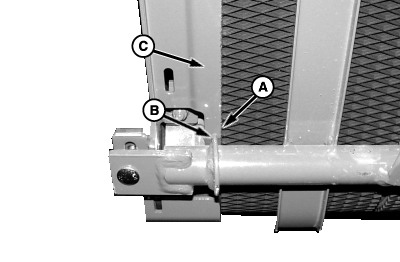

   E55290-UN-22JUN07

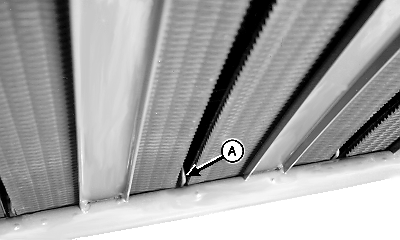

   A - Outside Belt

   B - Guide Washer

   C - Guide

   Check tracking of outside belts (A) relative to guide washers (B). There must be clearance between the outer edge of the belt and guide washer on both sides of the baler. Some occasional contact between the belt and the washer is allowable, but continuous contact is not allowable.

---




4.
   E40605-UN-26JUN96


   E48783-UN-10AUG00

   Without Cover-Edge™ Net Wrap


   E48252-UN-08JAN02

   With Cover-Edge™ Net Wrap

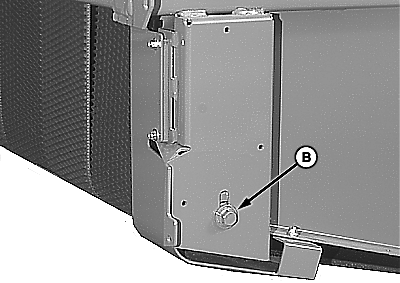

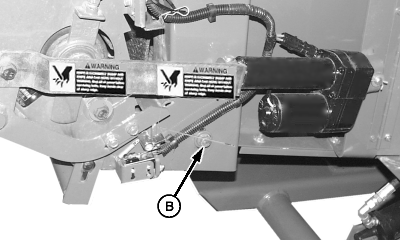

   A - Lower Belt Guide

   B - Cap Screw

   If belts are not centered at the lower belt guide (A), make the following adjustments:
   • If belts track to the left:



   1. Loosen cap screw (B) at the right side.

   2. Raise RIGHT end of the lower rear gate roll.

   3. Tighten cap screw (B).

   • If belts track to the right:



   1. Loosen cap screw (B) at the right side.

   2. Lower the RIGHT end of the lower rear gate roll.

   3. Tighten cap screw (B).

      After adjustment, be sure neither belt contacts guide washers continuously as described previously.

      Light contact with belt guides is acceptable, but belts must not curl against guide straps.

---




5. Tighten cap screw (B) to specification.

   Cap Screw	Torque	140 N·m (105 lb·ft)

6.
   E83148-UN-22MAY17


   E54025-UN-05JAN05

   Left-hand Side

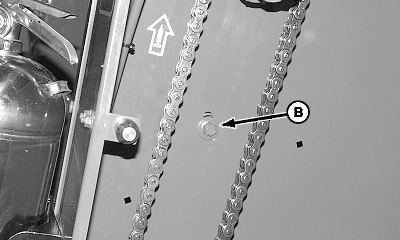

   A - Front Belt Guide

   B - Cap Screw

   If belts are not centered at the upper front belt guide (A), make the following adjustments:
   • If belts track to the right:



   1. Loosen cap screw at the right-hand side.

   2. Raise the RIGHT end of the front idler roll.

   3. Tighten cap screw.

   OR

   1. Loosen cap screw (B) at the left-hand side.

   2. Lower the LEFT end of the front idler roll.

   3. Tighten cap screw (B).

   • If belts track to the left:



   1. Loosen cap screw (B) at the left-hand side.

   2. Raise the LEFT end of the front idler roll.

   3. Tighten cap screw.

   OR

   1. Loosen cap screw at the right-hand side.

   2. Lower the RIGHT end of the front idler roll.

   3. Tighten cap screw.

---




7. Tighten cap screw on both sides of the roll to specification.

   Mounting Cap Screw	Torque	140 N·m (105 lb·ft)

8.
   E39725-UN-09FEB96

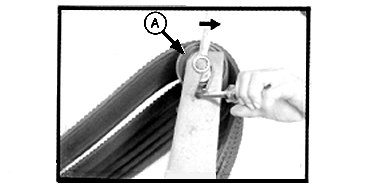

   A - Take-Up Roll

   If belts are not centered at the upper rear guide, make the following adjustment:
   • If belts track to the right, move the RIGHT end of the take-up roll (A) (in direction shown) in the short leg of the L shaped slot.
   • If belts track to the left, move the LEFT end of the take-up roll (A) (in direction shown) in the short leg of the L shaped slot.
   • Tighten cap screw to specification.

     Mounting Cap Screw	Torque	140 N·m (105 lb·ft)




---




9.
   E47618-UN-07JAN00

   Left-Hand Side Shown


   E47619-UN-07JAN00

   Left-Hand Side Shown

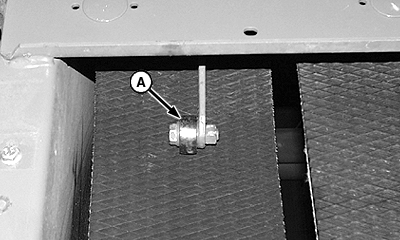

   A - Roller (Normal Outside Position)

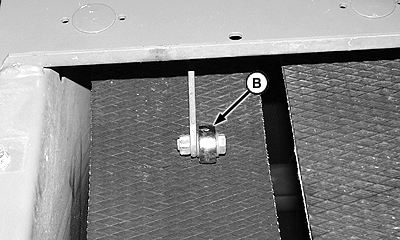

   B - Roller (Inside Position)

   If the outside belts track to the outside, rubbing the lower belt guide or side of the baler, adjust as follows:
   • Move the roller from the normal outside position (A) on the sender arm to the inside position (B). The belt tracks towards the middle of the baler.



---
