Install BaleTrak™ Pro or Plus Monitor-Controller in ComfortGard™ Cab

1. On some tractors, it is necessary to remove the foam corner post panel to gain access to the mounting studs. The panel needs holes drilled in order to fasten bracket (see the photo).

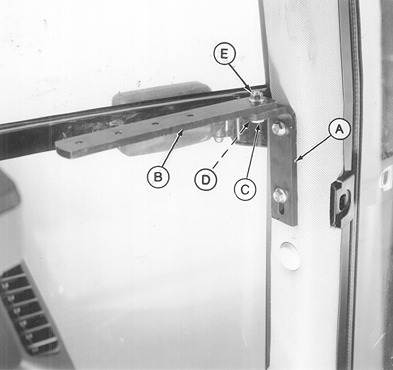

   E38450-UN-25APR95

   A - Angle

   B - Monitor-Controller Strap

   C - Cap Screw, M10 x 35

   D - Washer

   E - Flange Nut

   Remove top two plugs from the lower right-hand front cab post.

---




2. Install angle (A) to cab post. Fasten with two M10 x 20 flange-head cap screws.

3. Install monitor-controller strap (B) to angle (A). Fasten with M10 x 35 cap screw (C), washer (D), and flange nut (E).

4.
   E52435-UN-16JUN03

   BaleTrak™ Pro Monitor-Controller


   E84329-UN-06SEP17

   BaleTrak™ Plus Monitor-Controller

   A - BaleTrak™ Pro or Plus Monitor-Controller

   Put monitor-controller (A) pivot bracket on top of mounting bracket. Fasten with M6 x 16 cap screw.

---




5. Route harness along the right-hand side of the cab, away from the operating levers, and toward the rear of the cab.

6.
   RW22076-UN-04DEC92

   John Deere 7000 Series Tractor

   A - Convenience Outlet

   Connect harness power plug to the convenience outlet (A).

---




7. Route harness through grommet in back of cab, or drill a 44 mm (1-3/4 in) diameter hole in rear wall if necessary.
