Install BaleTrak™ Pro or Plus Monitor-Controller in Sound-Gard™ Cab

1.
   E21705-UN-15SEP88

   A - Cap Screws, 5/16 x 1-3/4 in

   B - Bracket

   Assemble monitor-controller bracket (B) to base.

---




2. Attach base to window ledge. Fasten with three 5/16 x 1-3/4 in cap screws (A).

3.
   E52435-UN-16JUN03

   BaleTrak™ Pro Monitor-Controller

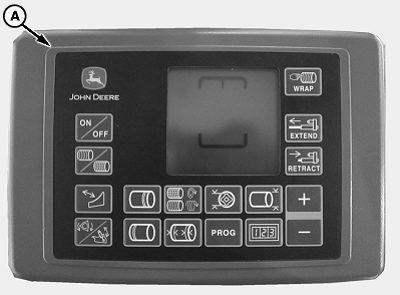

   E84329-UN-06SEP17

   BaleTrak™ Plus Monitor-Controller

   A - BaleTrak™ Pro or Plus Monitor-Controller

   Put monitor-controller (A) pivot bracket on top of mounting bracket. Fasten with M6 x 16 cap screw.

---




4. Route harness along the right-hand side of the cab, away from the operating levers, and toward the rear of the cab.

5.
   E21708-UN-06JUL89

   A - Convenience Outlet

   Connect harness power plug to the convenience outlet (A).

---




6. Route harness through grommet in back of cab, or drill a 44 mm (1-3/4 in) diameter hole in rear wall if necessary.
