BaleTrak™ Pro Monitor-Controller Keys and Switches

E84054-UN-11AUG17

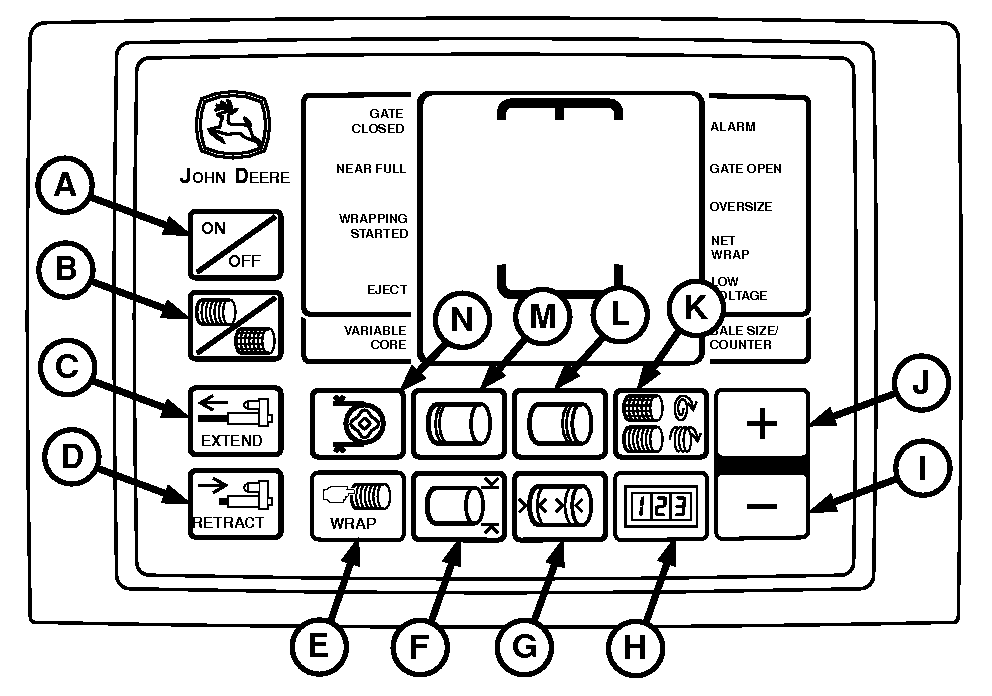

BaleTrak™ Pro Monitor-Controller

A - Monitor ON or OFF Switch

B - Selector Switch (Twine or Net)

C - Actuator Extend—Manual (Twine Only)

D - Actuator Retract—Manual (Twine Only)

E - Wrap Cycle—Manual Start

F - Bale Diameter

G - End Wrap Distance (Twine Only)

H - Bale Counters

I - Minus Key

J - Plus Key

K - Twine Spacing or Number of Net Wraps

L - Number of Right-Hand End Wraps (Twine Only)

M - Number of Left-Hand End Wraps (Twine Only)

N - Variable Core Diameter
