BaleTrak™ Pro and Plus Monitor-Controller Displays and Indicators

E84061-UN-15AUG17

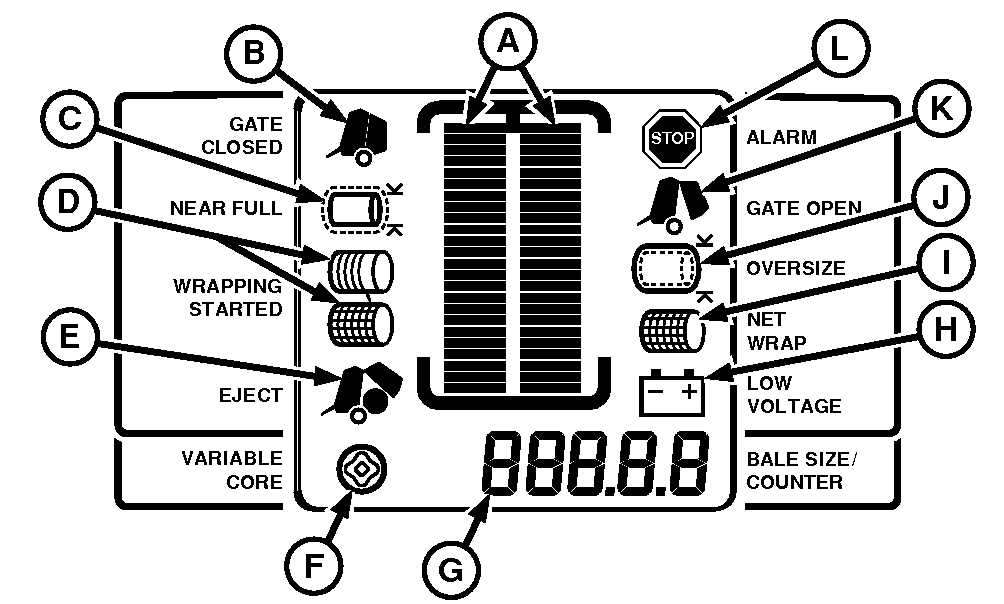

BaleTrak Pro Shown

A - Bale Shape Bars

B - Gate Closed

C - Near Full

D - Wrapping Started (Twine or Net)

E - Eject

F - Variable Core ON¹

G - Digital Display (Bale Size or Counter)

H - Low Voltage Alarm

I - Net Wrap Alarm²

J - Oversize Alarm

K - Gate Open Alarm

L - Stop Indicator (Flashing or Steady)

M - Audible Alarm (Not Shown)
