BaleTrak™ Pro and Plus Monitor-Controller Customer and Setup Channels

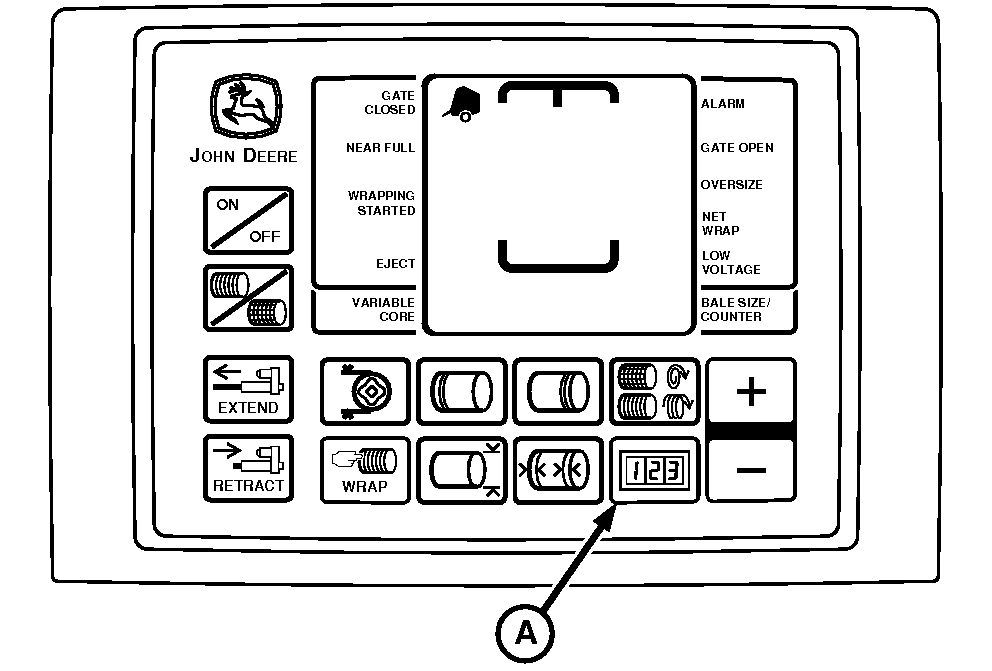

E52441
E52441-UN-18JUN03

BaleTrak™ Pro Monitor-Controller

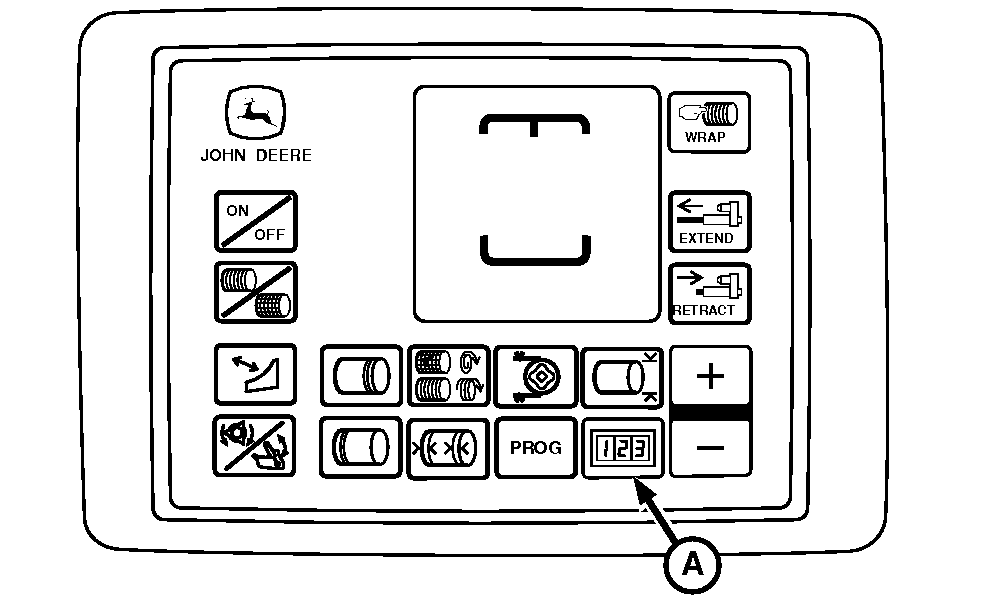

E84049
E84049-UN-11AUG17

BaleTrak™ Plus Monitor-Controller

A - COUNTER Key

There are three types of channeled programs:

  • Customer Channels (CH001—035)
  • Setup Channels (CH201—208)
  • Diagnostic Channels (CH301—312) (See your John Deere dealer)

Customer Channels (CH001—035) are used to:

  • Adjust bale shape bar display.
  • Set near-full indicator set point.
  • Reset monitor-controller to initial settings.
  • Adjust the net wrap delay.
  • Set bale shape display sensitivity.
  • Access dry straw twine wrap program.
  • Adjust bale diameter.
  • Adjust twine wrap.
  • Activate re-extension and cinch wrap program.
  • Check positions of sensors and switches.
  • Test twine or net actuators.
  • Test LCD display.
  • Test tractor voltage.
  • Adjust delay of twine eject.
  • Determine PTO and pickup drive speed.
  • Set net cut-off point for B-Wrap.
  • Set bale orientation for B-Wrap.

Setup Channels (CH201—208) are used to:

  • Select baler model.
  • Activate or deactivate twine arm.
  • Activate or deactivate the surface wrap.
  • Activate or deactivate the variable core.
  • Set up and calibrate slip clutch alert functions.

The following setup channels are not used on a 450M and 550M baler equipped with a Regular Pickup:

  • Channel 204
  • Channel 205
  • Channel 206
  • Channel 207

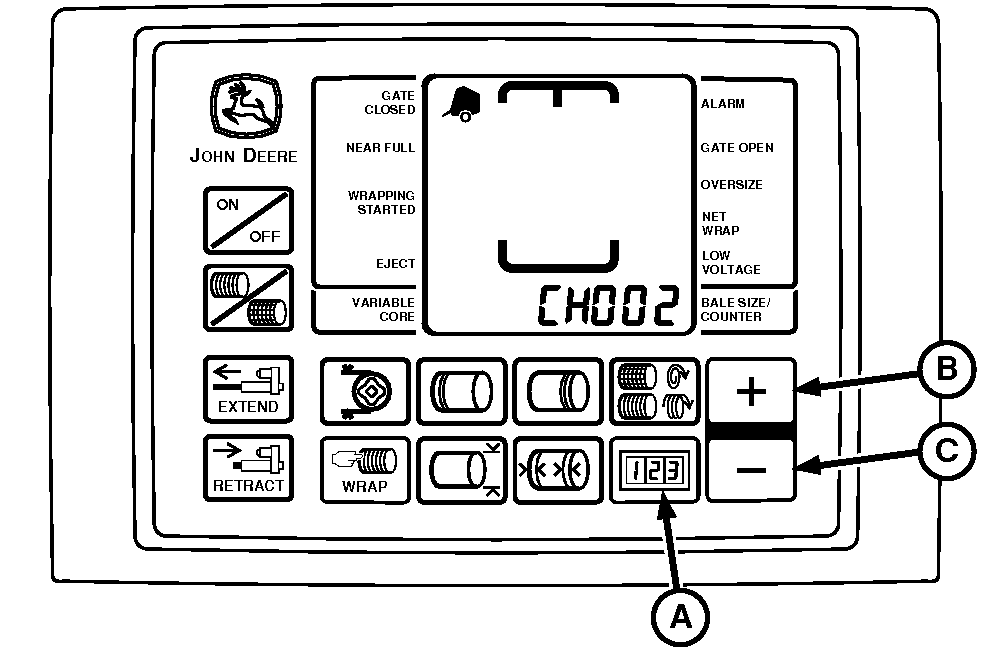

E52451
E52451-UN-18JUN03

BaleTrak™ Pro Monitor-Controller

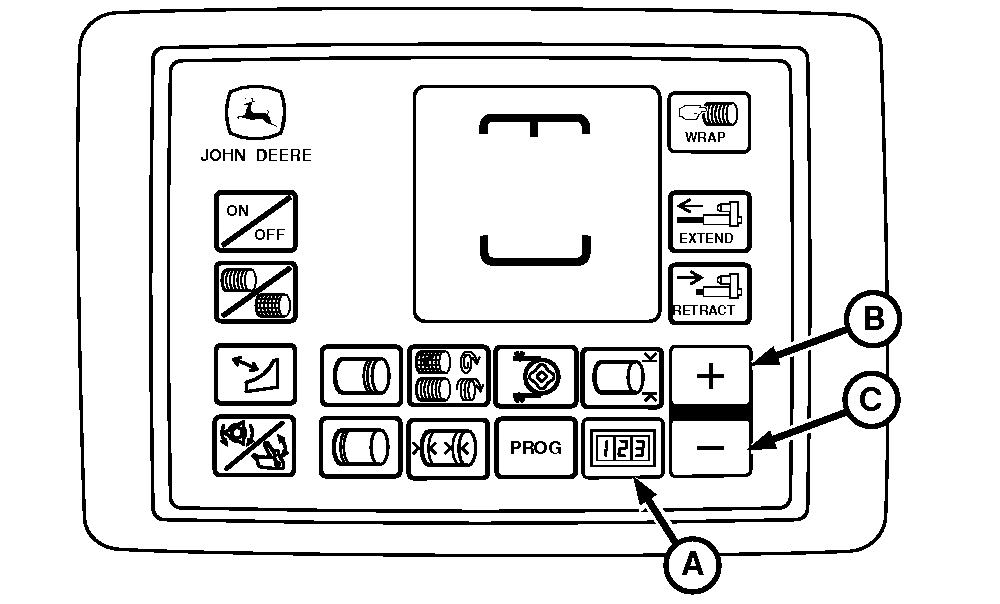

E84047
E84047-UN-10AUG17

BaleTrak™ Plus Monitor-Controller

A - COUNTER Key

B - PLUS Key

C - MINUS Key

To Enter Customer Channels:

  1. Turn tractor key to ON position. Do not start tractor engine. Press and hold COUNTER key (A), while turning the monitor-controller ON.

  2. Continue to hold COUNTER key (A) and press PLUS key (B) or MINUS key (C) until desired channel appears in digital display. Release key to see the current value for this channel.

    To change channels, press and hold COUNTER key (A) and use the PLUS key (B) and MINUS key (C) to access other channels.

  3. Turn monitor-controller OFF to enter setting into memory.

  4. Turn tractor key to OFF position and remove key.

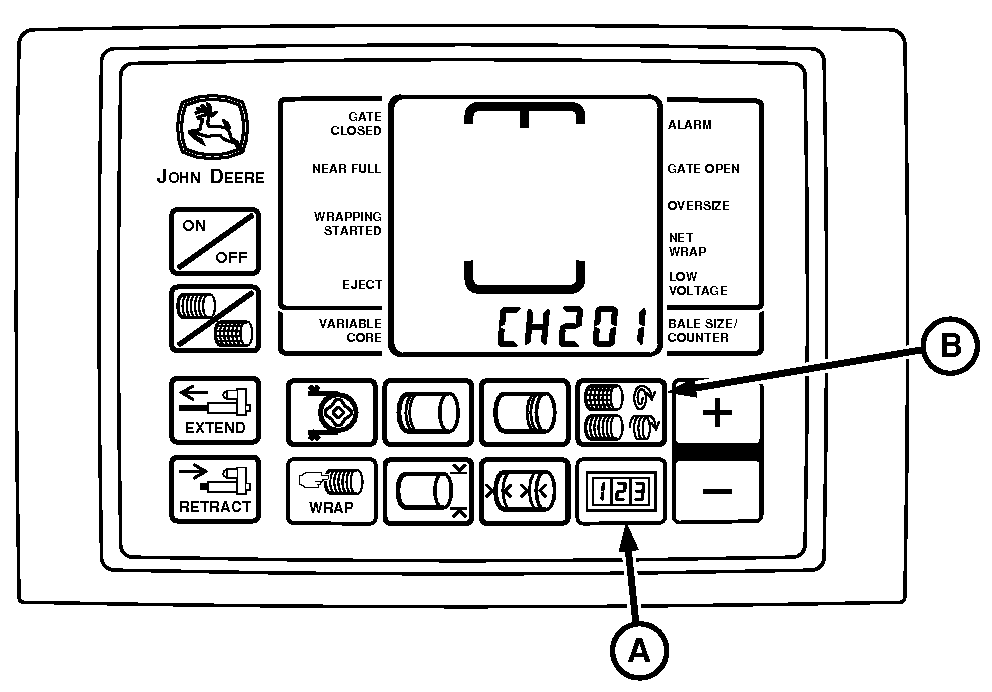

E52456
E52456-UN-10JUN08

BaleTrak™ Pro Monitor-Controller

A - COUNTER Key

B - NUMBER OF WRAPS Key

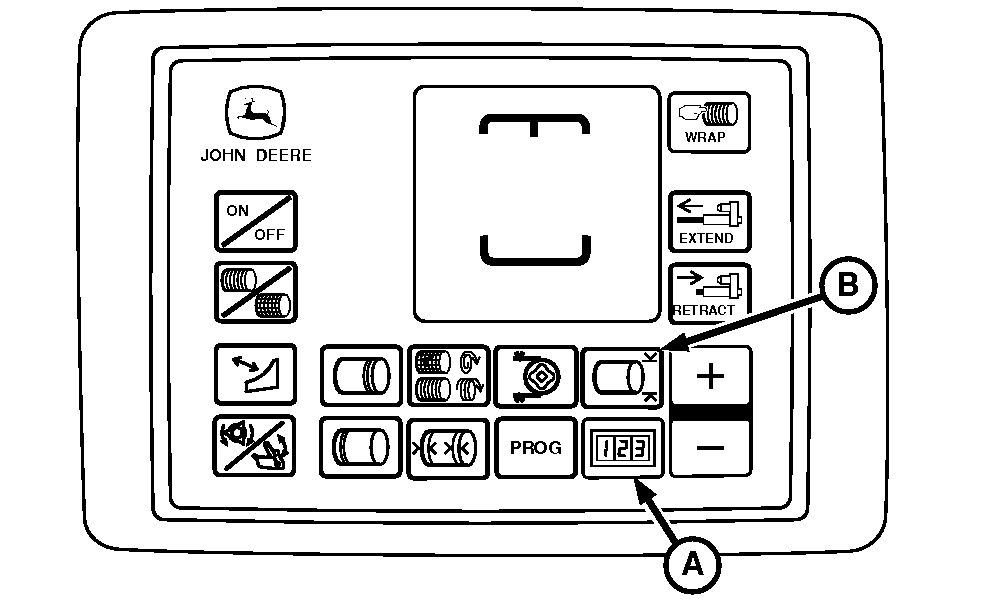

E84048
E84048-UN-11SEP17

BaleTrak™ Plus Monitor-Controller

A - COUNTER Key

B - BALE SIZE Key

To Enter Setup Channels:

  1. Turn tractor key to ON position. Do not start the tractor.

  2. For the BaleTrak™ Pro: Press and hold the COUNTER key (A) and NUMBER OF WRAPS key (B) while turning the monitor-controller ON. CH201 is displayed.

  3. For the BaleTrak™ Plus: Press and hold the COUNTER key (A) and BALE SIZE key (B) while turning on the monitor-controller ON.

  4. Release both keys. Bale model is displayed.

  5. Press and hold COUNTER key (A) and press the PLUS key until desired channel is shown in display.

  6. Turn monitor-controller OFF to enter setting into memory.

  7. Turn monitor-controller ON. Baler model appears for approximately 2 seconds. Verify that model is correct.

  8. Turn tractor key to OFF position and remove key.

BaleTrak is a trademark of Deere & Company

SF04007,0000F4A-19-20170912
