Activate BaleTrak™ Pro and Plus Monitor-Controller Alarms

Continuing to operate with a GATE OPEN or OVERSIZE alarm results in baler damage.

E47506
E47506-UN-10JUN08

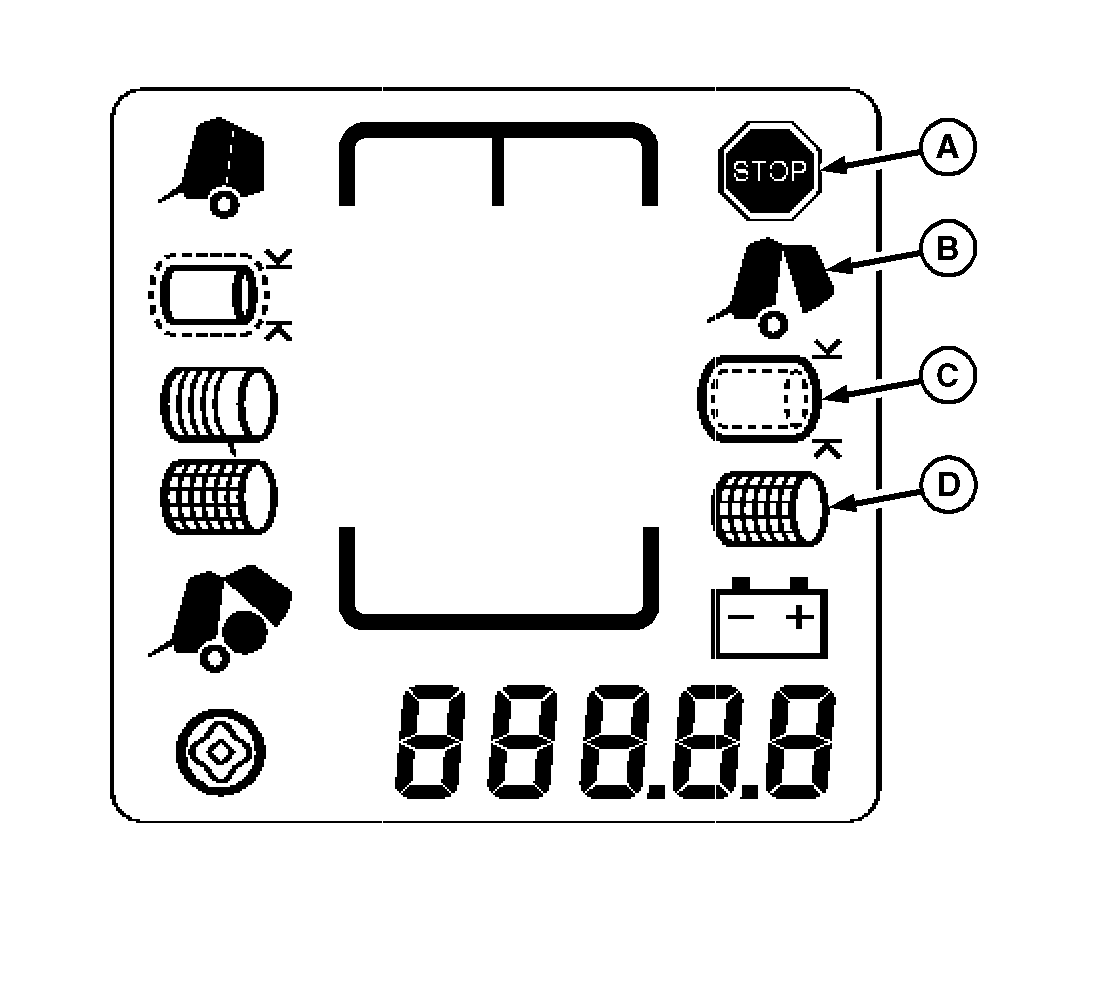

A - Stop Indicator

B - Gate Open Indicator

C - Oversize Bale Indicator

D - Net Wrap Indicator

Three conditions can activate the flashing STOP indicator (A) and alarm. Stop baling immediately if the flashing STOP display and the alarm sound during normal operation. To silence the alarm and cancel visual indicators, take corrective action.

The following conditions activate the flashing STOP indicator (A) and alarm:

  • GATE OPEN (B): Gate is open. Continuing to operate can twist gate and result in machine damage.
  • OVERSIZE (C): Bale is above maximum allowable diameter. Continuing to operate with the oversize bale in the chamber can cause severe gate damage, roller breakage, and belt splice damage.
  • NET WRAP (D): Net did not feed or knife did not cut net.

If the wiring to the actuator is disconnected or damaged, a flashing STOP indicator with no alarm can also appear at start-up.
