Reset BaleTrak™ Pro and Plus Monitor-Controller to Initial Settings (Channel 001)

E52442-UN-18JUN03

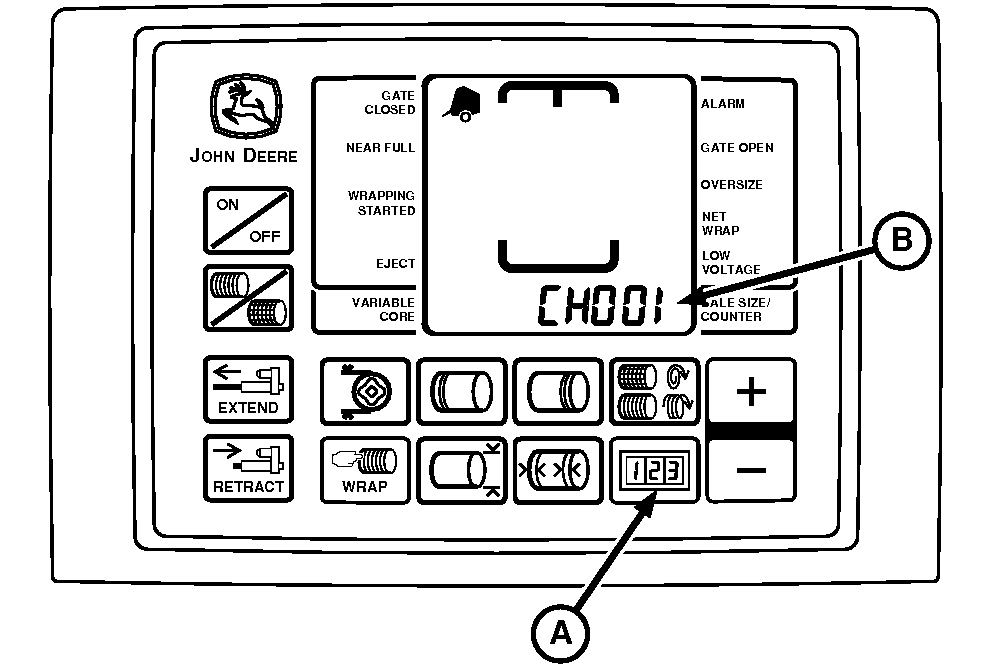

A - COUNTER Key

B - CH 001 Displayed

1. Turn tractor key to ON position. Do not start tractor engine.

2. Press and hold COUNTER key (A) while turning on the monitor.

3. Release key; digital display must show 050.

4. Simultaneously press and hold the PLUS and MINUS keys until the digital display changes from 050—099; then release the keys.

   Display change is a visual indication that adjusted set points have reverted to initial settings. (See BaleTrak™ Pro or Plus Monitor-Controller Setup Values and Initial Settings, in this section, to see which settings have changed.)

5. Turn monitor off to enter initial settings into memory.

   • If in English units, the reset values are in English.
   • If in metric units, the reset values are in metric.



6. Turn tractor key to OFF position. Remove key.
