View and Reset Bale Counter

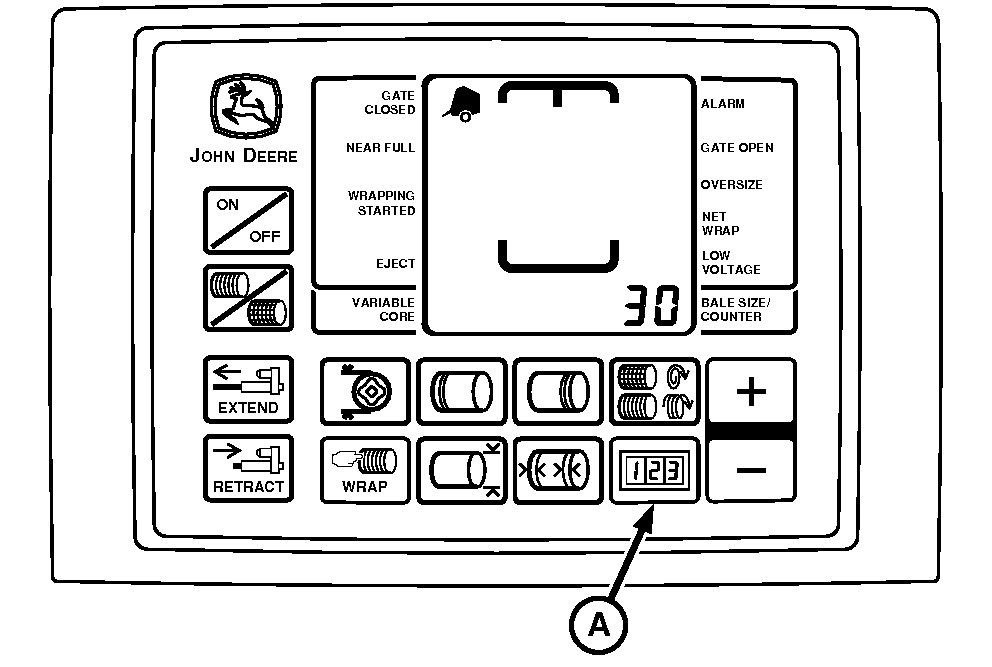

E52449-UN-02JUN08

BaleTrak™ Pro Monitor-Controller

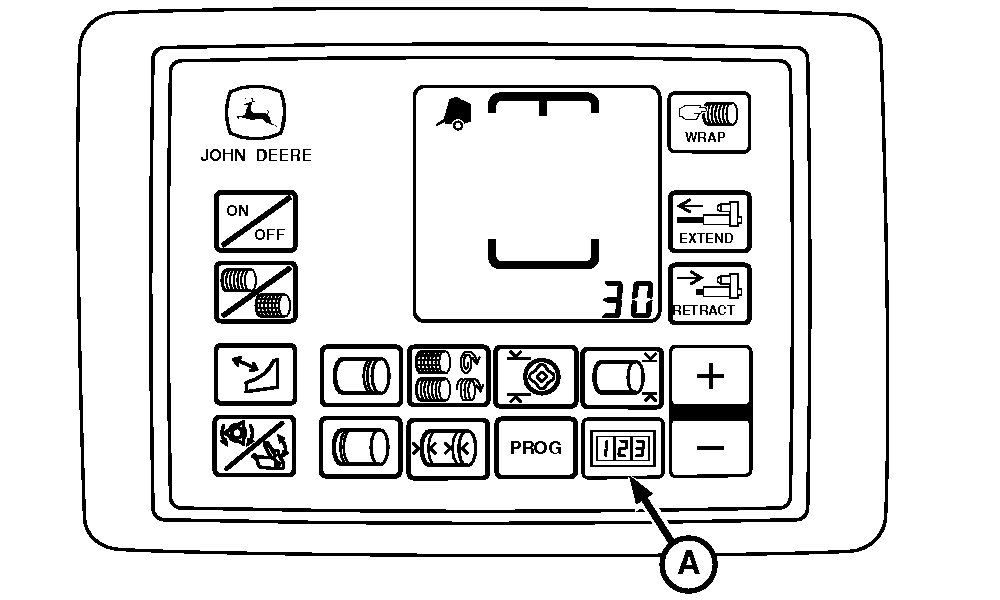

E84247-UN-29AUG17

BaleTrak™ Plus Monitor-Controller

A - COUNTER Key

The RESETABLE counter can be cleared or modified as desired, while the TOTAL BALE counter cannot be reset or cleared. A wrapping cycle and gate latch open cycle adds one bale to both of the counters.

To view the counter-memory:

1. When key (A) is pressed, the display shows the bale count for 6 seconds, then reverts to the regular display.

   Depress COUNTER key (A) once to display RESETABLE counter.

2. Depress COUNTER key twice to display TOTAL BALE counter.

To clear RESETABLE counter-memory:

1. Press COUNTER key (A) once, then release.

2. While count is displayed, press and hold MINUS key until display shows 0000.

   Bale count in the RESETABLE counter can be increased to add fields together, or decreased, to remove aborted bales (such as bales not bound correctly). Adding or removing bales from the RESETABLE counter does not affect the TOTAL BALE counter.

To change number of bales in the RESETABLE counter:

1. Press and hold COUNTER key (A).

2. While holding key (A), press PLUS or MINUS key to change bale count as desired.
