Load Twine Boxes

1.
   E69389-UN-08FEB13

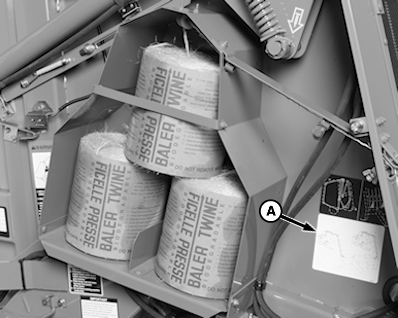

   Right-Hand Side


   E69390-UN-08FEB13

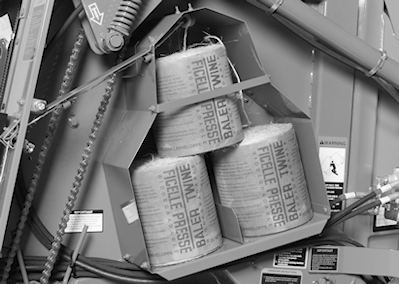

   Left-Hand Side


   E26419-UN-12SEP00

   Plastic Twine (Sheet Bend Knot)


   E65911-UN-15JUN12

   Sisal Twine (Square Knot)

   A - Threading Label

   Open side doors.

---




2. Place one ball of good quality twine in each twine box. Be sure that twine is pulled from the end of the ball marked TOP.

3. Route twine through guides, as shown.

4. The twine knot must be small enough to pass through the guides and twine arm.

   Join twine by tying the inside end of one ball to the outside of other ball.

   • Tie plastic twine balls together with a sheet bend knot.
   • Tie sisal twine balls together with a square knot.



5. Trim loose ends of twine as close to knot as possible.

6. Lift ball of twine and insert two lower twine balls in each twine box.

7. Connect twine ends as per label (A) provided on the right-hand side of baler.
