Adjust Main PTO Driveline Slip Clutch (MegaWide Plus and Regular Pickup)

1. To maintain drive protection, disassemble and clean dirt between the pressure plate and the disk spring. Dirt can become trapped between the pressure plate and the disk spring not allowing the disk spring to flatten.

   If the distance between the rear plate and the tab on the pressure plate is outside the specifications, the slip clutch will not slip. Damage to the drive components can occur or the clutch can slip too easily.

   Failure to follow the order of the following steps can damage the clutch.

   Clutch can be adjusted while on the machine.

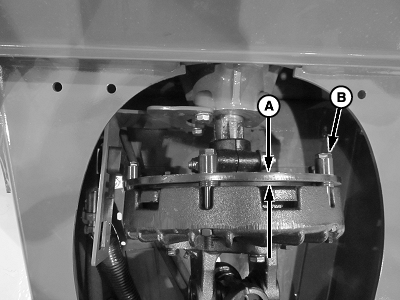

   E83431-UN-08JUN17

   540 rpm Bracket Assembly Shown

   A - Distance

   B - Cap Screw

   Raise gate fully using tractor hydraulics to slacken the belts.

---




2. Turn off tractor engine and remove key.

3. Lock gate.

4. Disconnect PTO driveline from tractor.

5. Measure distance (A).

   Rear Plate-to-Tab on Pressure Plate	Distance	4.7—7.1 mm (0.185—0.280 in)

6. If distance (A) is less than specification, go to Step 7.

   If distance (A) exceeds specification, perform the following special instructions:

   1. Remove one cap screw (B) from clutch.

   2. Remove one washer between the rear plate and the clutch housing.

   3. Install the washer between the head of the cap screw (B) and the rear plate.

   4. Tighten the cap screw.

   5. Repeat steps a—d for remaining five cap screws.

7. If distance (A) is less than specification, perform the following special instructions:

   1. Remove one cap screw (B) from the clutch.

   2. Remove one washer between the head of the cap screw (B) and the rear plate.

   3. Install washer between the rear plate and clutch housing.

   4. Tighten cap screw.

   5. Repeat steps a—d for the remaining five cap screws.

8. Measure distance (A). If the distance is still not within specification, and there are no washers between the rear plate and the housing, replace the clutch friction disk.

9. Unlock and the lower gate.
