Adjust Bale Diameter Sensor (Channel 005)

1.
   E57138-UN-12MAY09

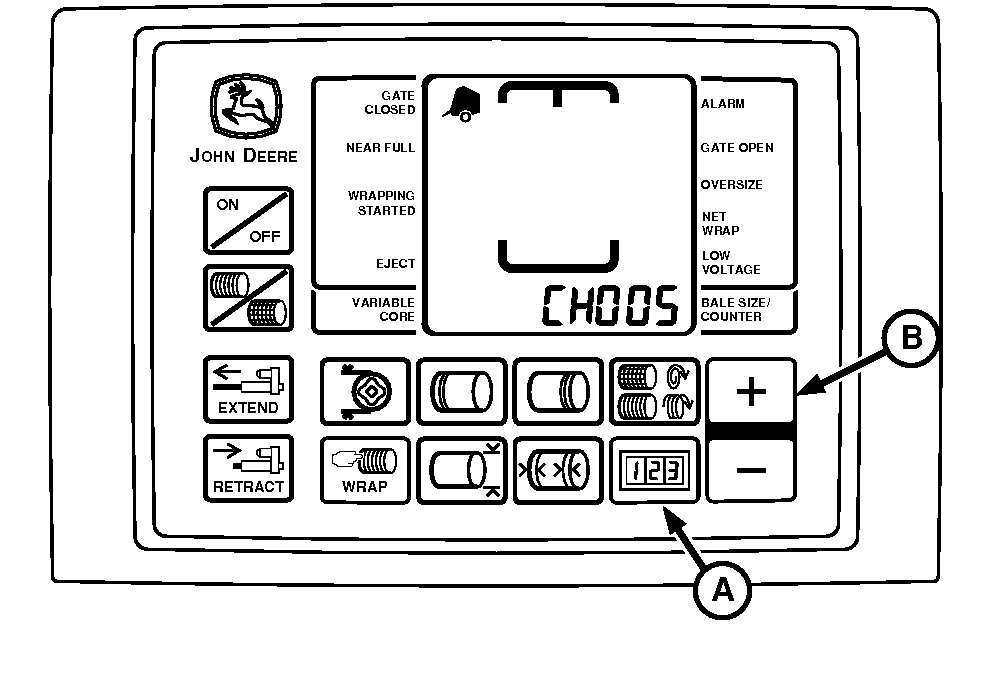

   BaleTrak Pro Monitor-Controller


   E84258-UN-30AUG17

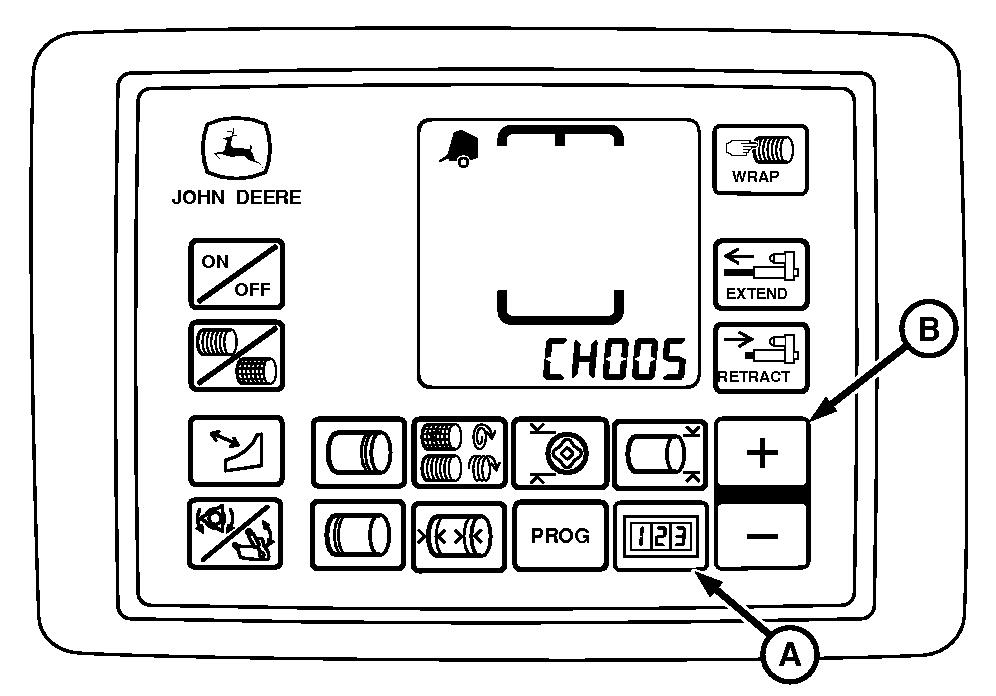

   BaleTrak Plus Monitor-Controller


   E83412-UN-07JUN17

   A - COUNTER Key

   B - PLUS Key

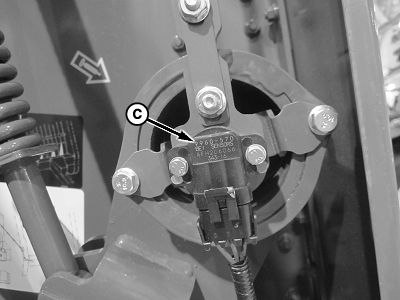

   C - Sensor

   Slowly raise the tension arm using the tractor SCV until the tension arm and gate are fully raised.

---




2. Access CH005on the BaleTrak™ monitor.

   The value displayed is the current calibration of the bale diameter.

3. To calibrate the bale diameter sensor to the current position, press the plus and minus keys simultaneously.

4. Lower the tension arm.

5. Check the calibration in-field and fine-tune with the CH028 calibration.
