Replace and Adjust Bale Diameter Sensor

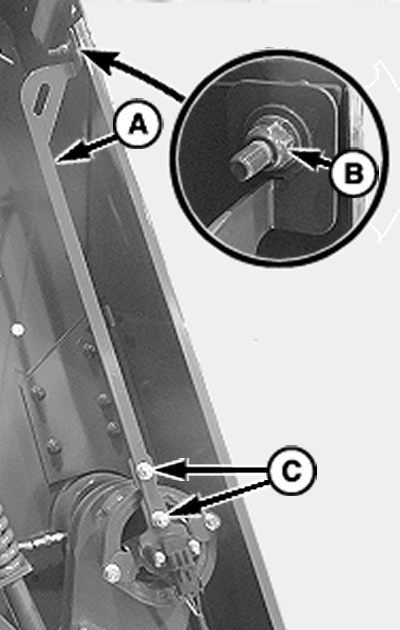

E83417-UN-19JUL17

A - Sensor Mounting Bracket

B - Carriage Bolt and Nut

C - Cap Screw and Nut (2 each used)

1. Remove and retain the carriage bolt and nut (B) and cap screws and nuts (C).

2. Replace mounting bracket (A).

3. Reinstall the carriage bolt and nut (B) and cap screws and nuts (C).

   Do not over tighten the carriage bolt (B).

4.

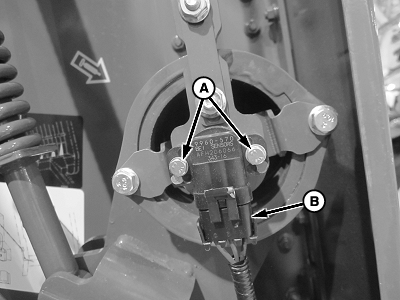

   E83418-UN-08JUN17

   A - Cap Screw (2 used)

   B - Connector

   To replace the sensor, unplug the connector (B).

---




5. Remove and retain the cap screws (A).

6.

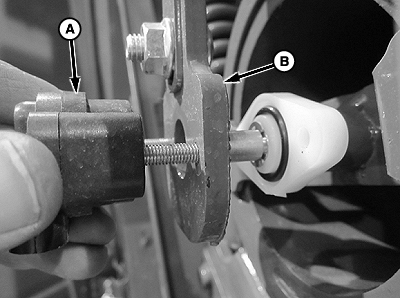

   E83538-UN-15JUN17

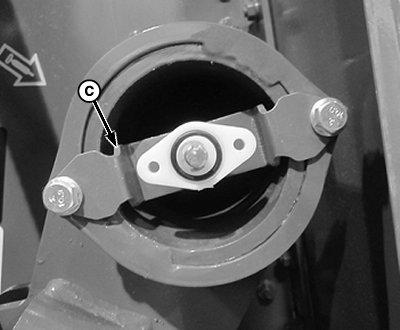

   E83539-UN-15JUN17

   A - Sensor

   B - Shaft Bracket

   C - Shaft Bracket Assembly

   Remove the sensor (A) from the shaft bracket (B). Replace the sensor (A).

---




7. Remove the shaft bracket assembly (C), if necessary.

8.
   E83418-UN-08JUN17

   Reinstall the cap screws (A) and plug in the connector (B).

---
