Install Driveline (MegaWide HC2)

1.
   E84042-UN-04AUG17

   A - PTO Shield

   B - Hitch Pin

   Remove and discard the shipping wire and raise the PTO shield (A).

---




2. Remove the gauge wheel arms and the hitch pin (B). Set aside for the hitch pin and safety chain assembly.

3.
   E83541-UN-16JUN17


   E83542-UN-07AUG17

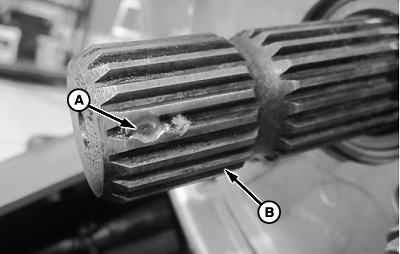

   A - Welded Spline

   B - Stub Shaft

   C - Wide Channel

   Locate the welded splines (A) on the stub shaft (B).

---

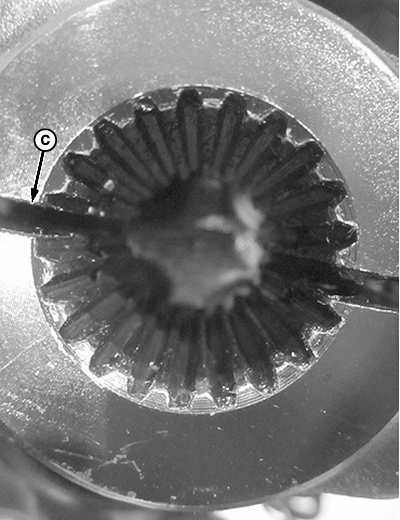

4. Index the PTO driveline aligning the wide channel (C) with the welded splines (A).

5.
   E83543-UN-16JUN17

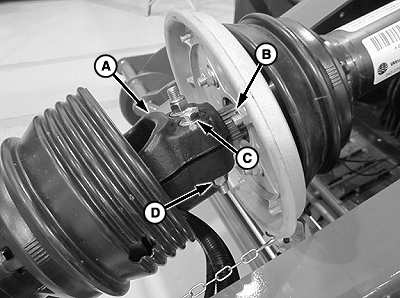

   A - PTO Driveline

   B - Stub Shaft

   C - Cap Screw, M12 x 70 (2 used)

   D - Nut, M12 (2 used)

   Slide the PTO driveline (A) onto the stub shaft (B).

---




6. Install the cap screws (C) and nuts (D) as shown. Tighten to specification.

   Cap Screws	Torque	140 N•m (105 lb·ft)
