Adjust Pickup Height (MegaWide™HC2 Feed System)

1. To protect the pickup teeth, it is recommended to run the gauge wheels on the ground. Only use the down stop jack bolts if the ground is uneven enough to prevent proper height gauging from the gauge wheels.

   Fully lower the pickup with the SCV.

2.

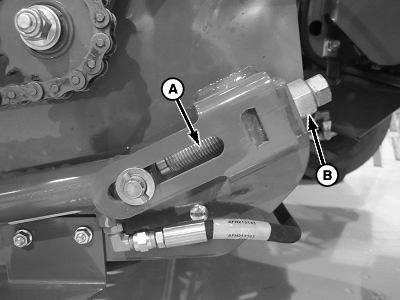

   E83510-UN-21JUL17

   Left-Hand Side Shown

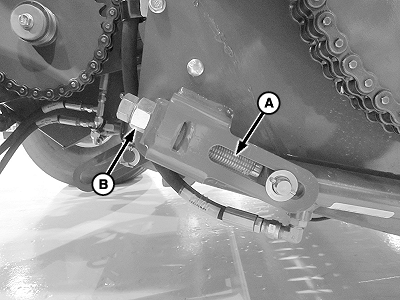

   E83511-UN-21JUL17

   Right-Hand Side Shown

   A - Jack Bolt

   B - Lock Nut

   Adjust the height by turning the jack bolt (A) clockwise (raise) or counterclockwise (lower).

---




3. To avoid pickup frame damage the left-hand and right-hand adjustments must be equal.

   Secure the jack bolt (A) by tightening the lock nut (B) against the frame.
