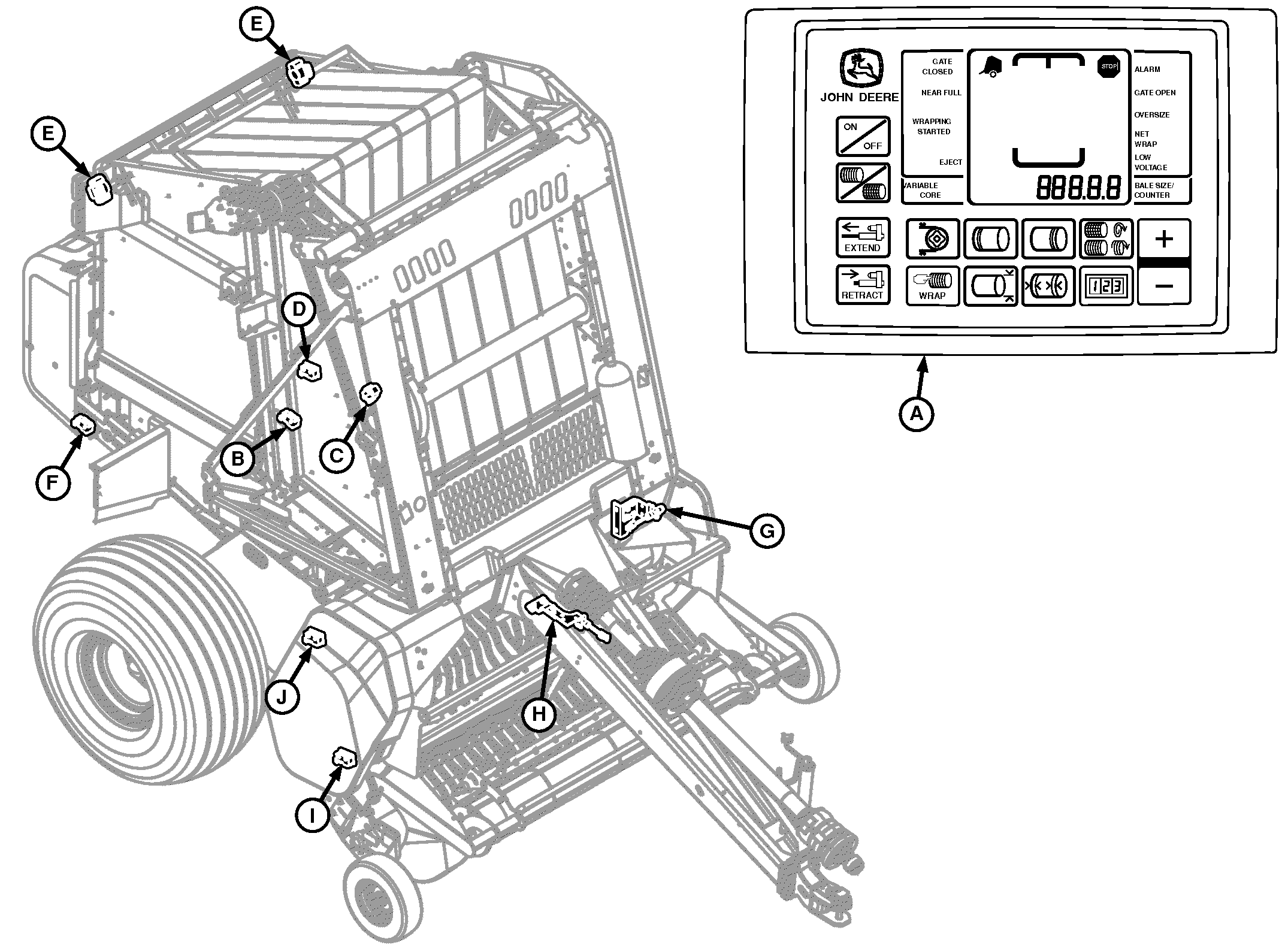

BaleTrak™ Pro and Plus HC2 System Component Locations

Not used on a 450M and 550M Baler with a Regular pickup.

E83496-UN-12SEP17

A - Monitor-Controller (BaleTrak™ Pro shown) (on tractor)

B - Gate Latch Switch (left-hand switch not used)

C - Bale Diameter Sensor

D - Oversize Bale Switch

E - Bale Shape Sensors

F - Net Wrap Switch (if equipped)

G - Pickup Slip Clutch Alert Sensor

H - PTO Slip Clutch Alert Sensor

I - Knife Switch

J - Drop Floor Switch
