Install Jack

1.

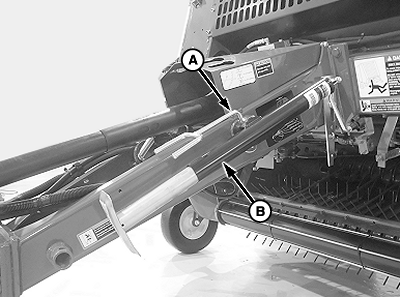

   E83497-UN-13JUN17

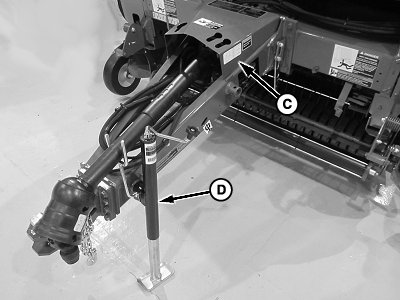

   E83498-UN-13JUN17

   A - Jack

   B - Quick Lock Pin

   C - PTO Shield

   D - Vertical Position

   E - PTO Support

   Park baler on a level surface.

---




2. Block both wheels at front and rear to prevent baler rolling.

3. Raise tongue with an appropriate lifting device. Remove jack (A) from the storage location. Place in vertical location (D) and secure to the support (E) and quick-lock pin (B).

4. Remove wire from the PTO shield (C).

5. (MegaWide™ Plus or Pro pickup only) Remove gauge wheel arms from inside the tongue. Set aside for installing the gauge wheel arms.

6. Raise PTO shield (C) and remove tie strap from hoses and wire harness.
