Detach Baler from Tractor

1. To prevent personal injury caused by unexpected movement:

   • Park machines on a level surface
   • Engage tractor parking brake and place transmission in Park
   • Disengage PTO
   • Shut off engine and remove ignition key.

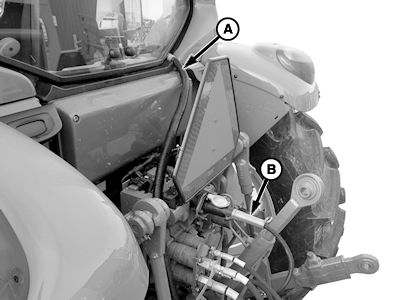

   E61072-UN-30MAR12

   A - Baler Wire Harness

   B - Tail or Warning Light Plug

   Park baler on a level surface, or block both baler wheels so baler cannot roll after detaching from the tractor.

---




2. Engage tractor parking brake and place transmission in Park.

3. Shut off engine and remove ignition key.

4. Disconnect baler wire harness (A) and tail or warning light plug (B). Store warning light plug and wire harness in the PTO shield slots.

5.


   X9811-UN-23AUG88

   Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high-pressure fluids.

   If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene can result. Doctors unfamiliar with this type of injury must reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

   On 7000 Series John Deere tractors; Push SCV lever lockout to the right (transport lock) before detaching implements to prevent implement movement and possible personal injury.

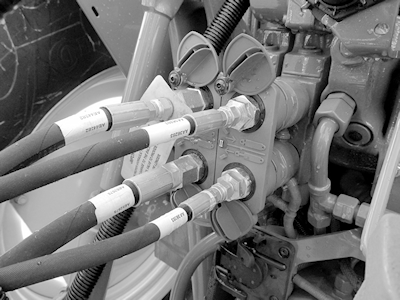

   E62266-UN-30MAR12

   To disconnect hoses, pull hoses from tractor receptacles.

---




6. Store hydraulic fittings and wire harnesses as shown. If not stored properly, damage can occur.


   E84059-UN-14AUG17

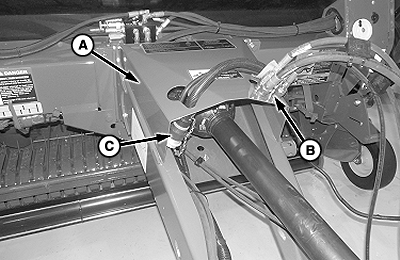

   A - PTO Shield

   B - Hydraulic Hoses

   C - Baler Wire Harness

   Store the wire harness (C) and hydraulic hoses (B) under the PTO shield (A).

---




7.

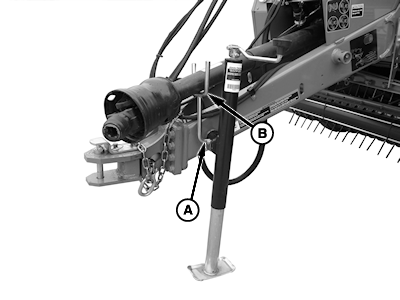

   E62267-UN-02APR12

   A - Pin

   B - PTO Support

   Remove quick-lock pin, pin with PTO support and jackstand from storage location. Put jackstand in tongue support location.

---




8. Insert PTO support pin (A) through jackstand with support facing front of tongue and fasten with quick-lock pin.

9. Turn handle clockwise to take the load off the tractor drawbar. After disconnecting PTO from tractor, place driveline in PTO support (B).

10.


    TS198-UN-23AUG88

    Shut off tractor engine before detaching PTO driveline. Entanglement in the rotating driveline can cause serious injury or death.

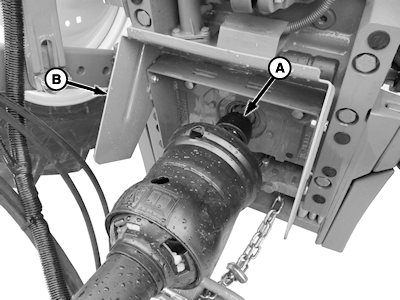

    E62268-UN-02APR12

    A - Collar

    B - PTO Shield

    Raise the tractor PTO shield (B), if equipped.

---




11. Support driveline and pull back on collar (A). Slide the driveline off the tractor shaft. Place driveline in the PTO support on the jackstand.

12. Lower tractor PTO shield (B) or reinstall.

13. Disconnect safety chain from tractor.

14. Remove drawbar shield.

15. Remove hitch pin.

16. Carefully drive the tractor away from the baler.
