BaleTrak™ Plus Monitor-Controller Keys and Switches

E84055-UN-15AUG17

BaleTrak™ Plus

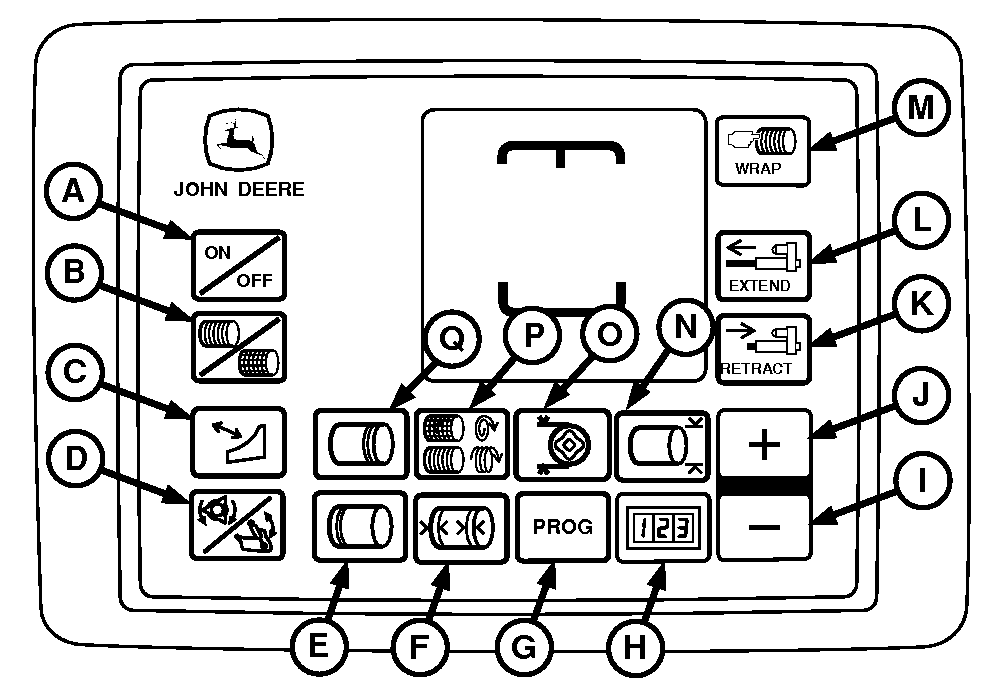

A - Monitor ON or OFF Switch

B - Selector Switch (Twine or Net¹)

C - Engage/Disengage Knives

D - Raise/Lower Drop Floor

E - Number of Left-Hand End Wraps (Twine Only)

F - End Wrap Distance (Twine Only)

G - Program (Cinch, Dry Straw, and Re-Extension)

H - Bale Counters

I - Minus Key

J - Plus Key

K - Actuator Retract—Manual (Twine Only)

L - Actuator Extend—Manual (Twine Only)

M - Wrap Cycle—Manual Start

N - Bale Diameter

O - Variable Core Diameter¹

P - Twine Spacing or Number of Net Wraps

Q - Number of Right-Hand End Wraps (Twine Only)
