Adjust Bale Diameter Sensor (Channel 005)

1.
   E84494-UN-14SEP17


   E84493-UN-14SEP17

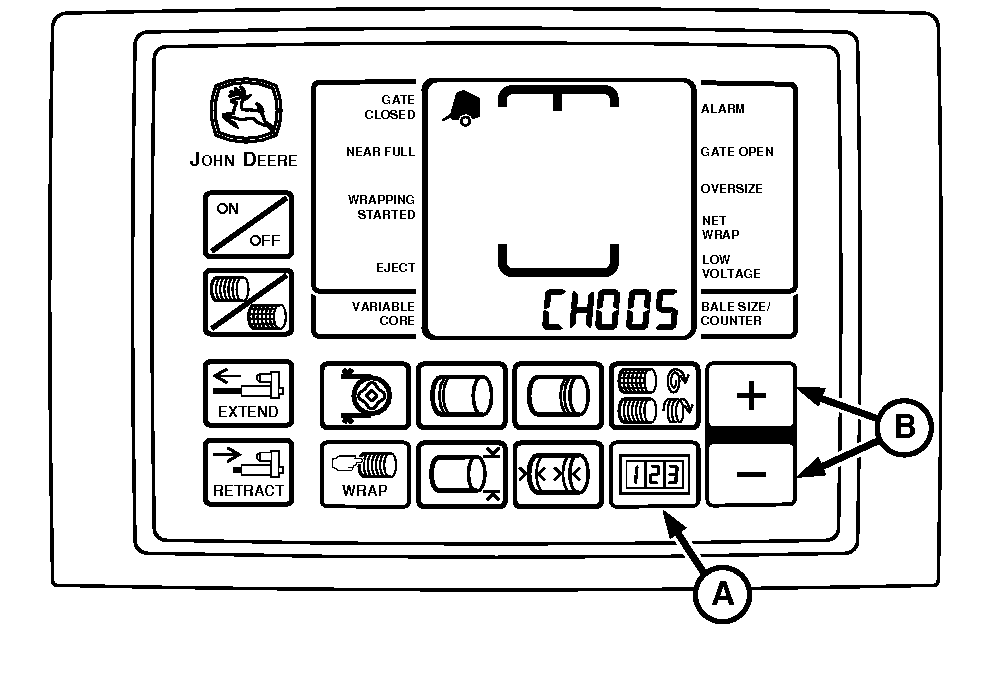

   A - COUNTER Key

   B - PLUS and MINUS Keys

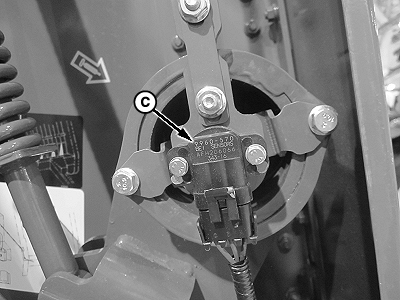

   C - Bale Diameter Sensor

   Slowly raise the tension arm using the tractor SCV. Raise until the tension arm is all the way up and the gate is fully open.

---




2. Access CH005 on the BaleTrak™ monitor.

   The value displayed when the channel is first entered is the current calibration of the bale diameter sensor. If the tension arm is moved then the current sensor reading is shown.

3. To save the calibrations, press the PLUS and MINUS keys (B) simultaneously. An audible beep is heard.

4. Lower the tension arm.

5. Check the calibration in-field and fine-tune with CH028 calibration. (See Adjust Bale Diameter in Operating the Baler section.)
