Every 10 Hours

Chains

TS284-UN-23AUG88

Liberally apply SAE 30 or heavier oil to chains every 10 hours of operation.

Lubricate chains immediately after operation when the chains are still warm. Let the machine stand idle for a short period to ensure effective oil penetration, resulting in longer chain life.

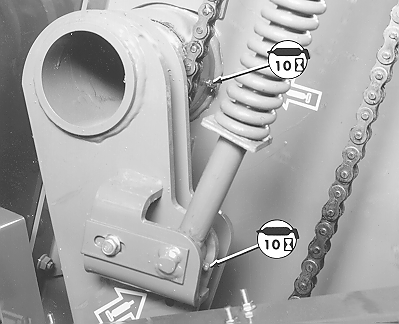

Tension Arm Pivots

E39579-UN-15NOV95

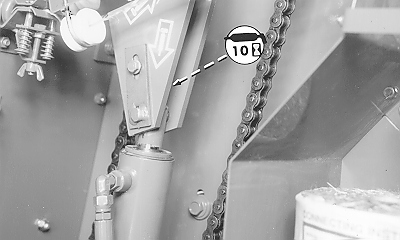

Tension Cylinder Rods

E39583-UN-15NOV95

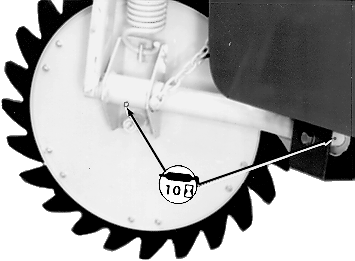

Gathering Wheels and Support Pivot (If Equipped)

E39589-UN-30JUN99

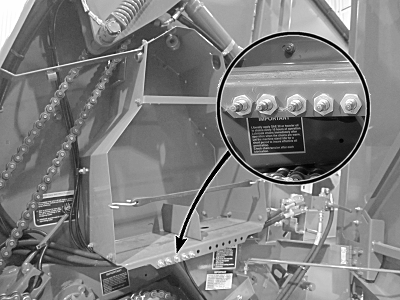

Lubrication Fittings

Precutter HC2 Models

All grease fittings are at 10 hour intervals.

E83609-UN-13JUL17

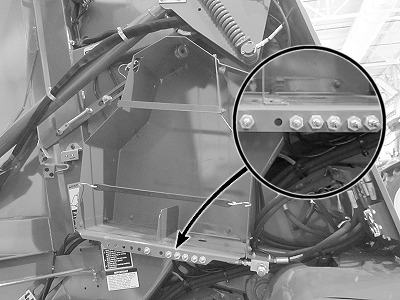

Lubrication Fittings (Left-Hand Side)

E83610-UN-13JUL17

Lubrication Fitting (Right-Hand Side)
