Adjust Roller Baffle Float Tension (MegaWide Plus Only)

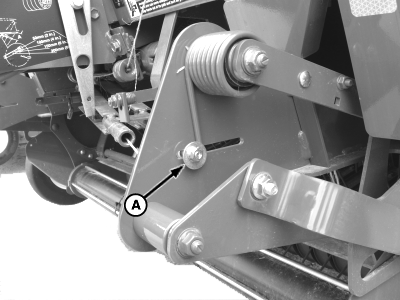

E54714-UN-28JUN06

A - Nut

Float tension spring must be adjusted evenly on both sides of the roller baffle.

Move the tension spring by prying between the washer and the front of the slot. This moves the spring tine to the rear.

• To increase the float, loosen the nut (A) and move the spring tine to the rear.
• To decrease the float, loosen the nut (A) and let the spring tine move forward.
• Repeat on the opposite side.
