Install Gauge Wheel Arms
(MegaWide™ Plus Pickup and MegaWide™ HC2 Pickup)

1. If 1/2 to two threads are not shown beyond flange locknuts, studs (F) may have turned back inside while tightening locknuts. If the stud has backed inside, remove gauge wheel arm, place double nuts on cam studs, and turn counterclockwise to turn out studs until 1/2 to two threads extend beyond the lock nut when reinstalled. Remove double nuts and continue installation.

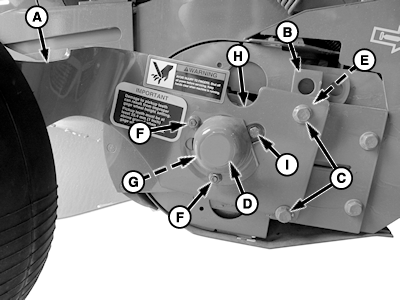

   E67703-UN-04SEP12

   Left-Hand Side Shown

   A - Gauge Wheel Arm

   B - Strap (2 used)

   C - Cap Screw, M12 x 40 (2 used)

   D - End Cap

   E - Shim

   F - Flange Locknut (2 used)

   G - Disk

   H - Notch

   I - Bolt

   Remove gauge wheel arms (A) from tongue.

---




2. Remove locknuts (F) and end cap (D). Disk (G) remains in place.

3. Remove and retain cap screws (C).

4. Do not remove the bolt (I).

5. Install gauge wheel arm with notch (H) as shown. Insert two straps (B) and shims (E) between the gauge wheel arm and pickup frame and install using previously removed cap screws (C).

6. Install end cap (D) with two 3/8 in nuts. Tighten to specification.

   End Cap Nuts	Torque	47 N·m (35 lb·ft)

7. Tighten cap screws (C).

8. Repeat on the opposite side.
