Replace Bale Shape Sensor

1. Engage gate lock and raise tension arm.

2. Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.

3.

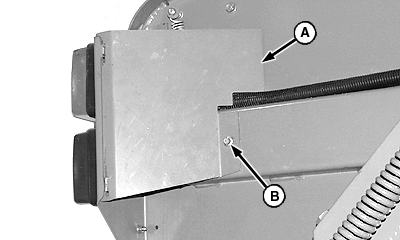

   E47621-UN-07JAN00

   Right-Hand Side Shown

   A - Shield

   B - Rolling Thread Cap Screw

   To replace the sensor, remove rolling thread cap screw (B). Rotate shield (A) away from baler.

---




4.

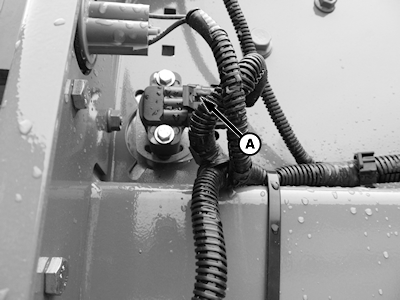

   E62314-UN-03APR12

   A - Wire Connector

   Disconnect wire connector (A).

---




5.

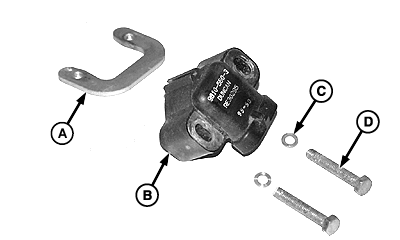

   E84114-UN-12SEP17

   A - Mounting Strap

   B - Sensor

   C - Washer (2 used)

   D - Mounting Screw (2 used)

   Remove parts (A—D).

---




6.
   E48085-UN-06JUN00

   A - Groove

   Install new sensor in reverse order of removal.

   Make sure that O-ring is inserted in groove (A).

---
