Check Brake Retainer Adjustment

1. Brake retainer adjustment is set at the factory.

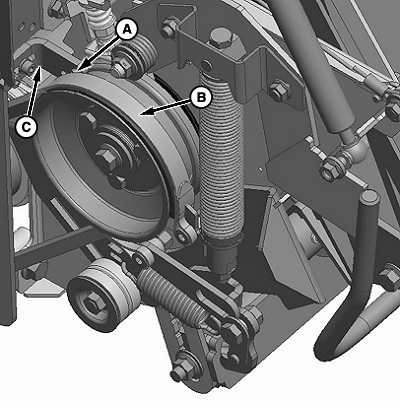

   E83621-UN-20JUL17

   A - Gap, 0.25—1.0 mm (0.01—0.039 in)

   B - Brake Band

   C - Retainer

   Check and adjust the gap (A) between the brake band (B) and the retainer (C).

---




2.

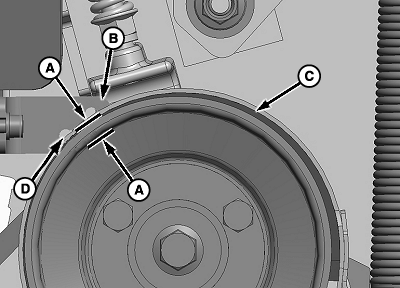

   E83622-UN-20JUL17

   A - Overlap, 3—5 mm (0.118—0.197 in)

   B - Retainer

   C - Brake

   D - Hole (2 used))

   Check and adjust the overlap (A) between the brake (C) and the retainer (B) with the hole’s (D) tangent.

---
