Annually

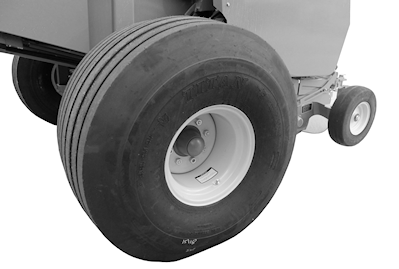

Baler Wheel Bearings and Gathering Wheel Bearings (If Equipped)

E62049-UN-30MAR12

Remove the wheels; then clean, repack, and adjust bearings. Use John Deere SD Polyurea or an equivalent SAE multipurpose type grease, or wheel bearing grease.

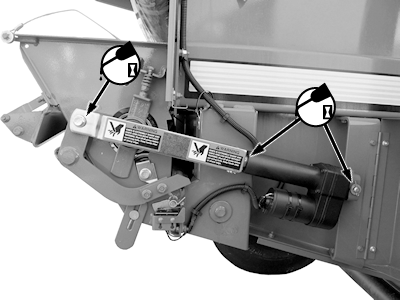

CoverEdge™ Net Wrap Actuator (If Equipped)

E61071-UN-16MAR12

Right-Hand Side

Lubricate rod end and base end actuator and link mounting pins with SAE 30 or heavier oil.

Gear Case

E83889-UN-26JUL17

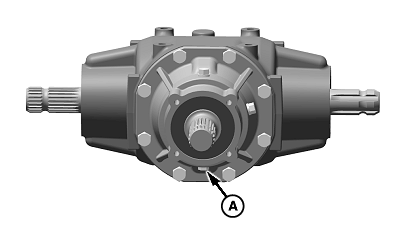

L Gear Case

E83890-UN-26JUL17

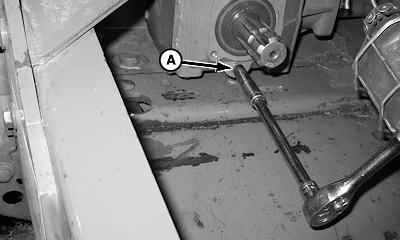

T Gear Case (HC2)

Remove drain plug (A) and drain and refill gear case annually.

Driveline has been removed for illustration purposes.

Over-filling the gear case can result in overheating and oil leakage.

Check level of lubricant with dipstick. Lubricant must fall between grooves on dipstick.

Refill as necessary using SAE 85-140 API GL-5 gear lubricant. Drain and refill gear case once each season.

Gear Case	Capacity	1.2 L (1.25 qt)

T Gear Case	Capacity	1.35 L (1.427 qt)

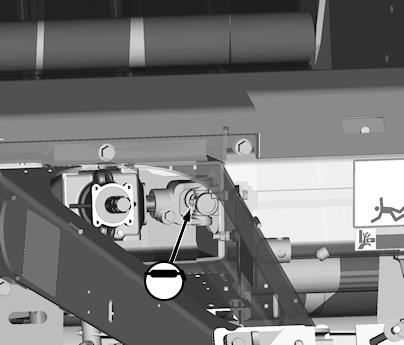

Gearbox Output Shaft U-Joint

E62434-UN-10APR12

Driveline and shields removed for illustration purposes.

Grease lubrication fitting annually or every 250 hours.

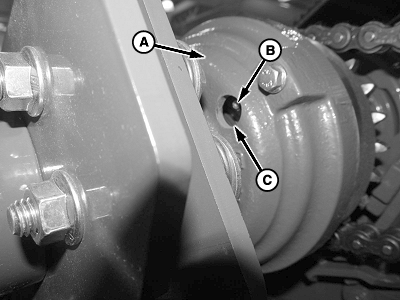

Third Roll Drive Clutch

E84109-UN-18AUG17

Third Roll Drive Clutch

A - Clutch Hub

B - Clutch Grease Fitting

C - Hole (3 used)

It is necessary to rotate the output shaft on the left-hand side of the baler to align the clutch grease fitting with the hole.(C).
