Adjust Cut Position of B-Wrap (Channel 034)

E69423-UN-20FEB13

E69427-UN-25FEB13

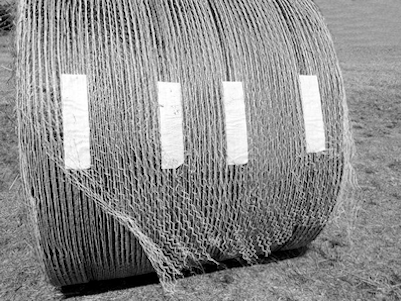

Tail is Too Long, Should Be 2—12 inches

Controls the length of net after the velcro.

• The remainder is called the tail.
• Net cuts off a few inches past the velcro. Leaving long tail can cause the wrap to pull off the bale during handling.

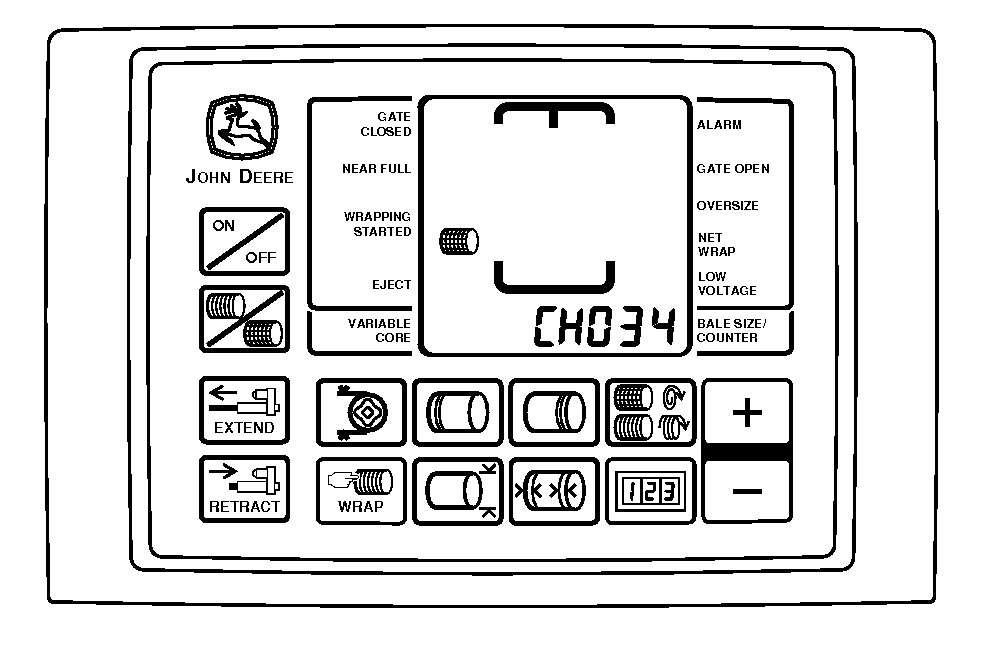

Enter the value in the monitor-controller memory for B-Wrap (customer channels).

• Default value is 126 with a minimum of 16 and maximum of 160 for the BaleTrak™ Pro.
• Default value is 69 with a minimum of 9 and maximum of 88 for the Precutter with the BaleTrak™ Plus monitor. Channel 034 must have the value set lower than Channel 035.
