Twine Feature—Turning On and Off (Channel 202)

E57095-UN-08MAY09

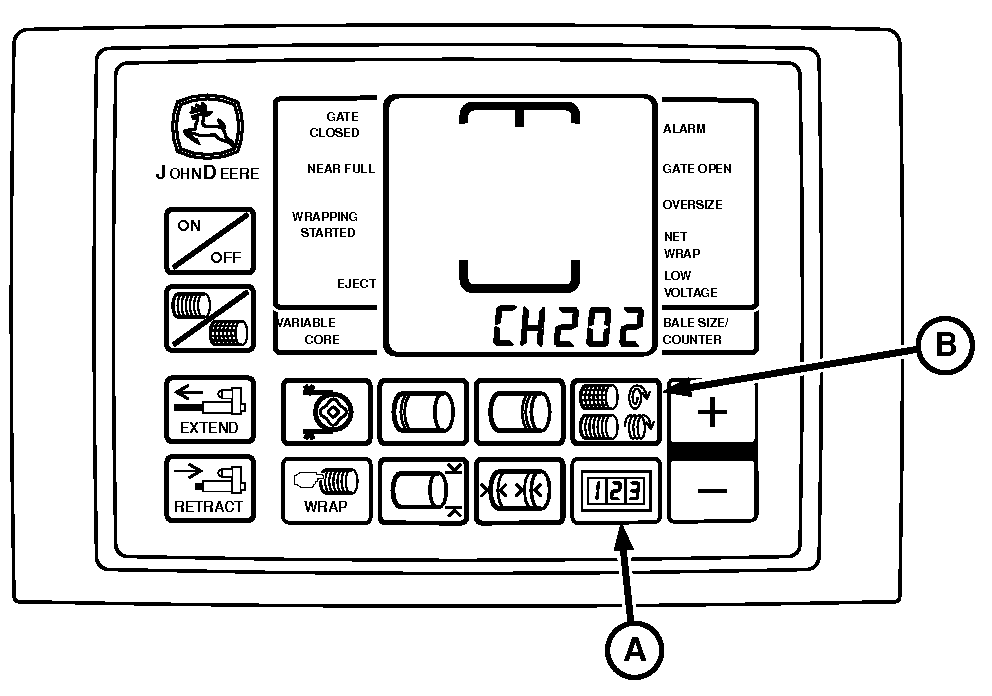

BaleTrak™ Pro Monitor-Controller Shown

A - COUNTER Key

B - NUMBER OF WRAPS Key

The twine feature can be turned OFF or ON by accessing Channel 202.

The model number displayed on the monitor-controller must match the baler model number. The twine or net wrap application, slip clutch alert, and optional variable core features only operate correctly if the numbers match.

If both twine and net application features are turned OFF, the monitor considers the twine feature ON.

Turning Feature On and Off:

1. Turn tractor key to ON position. Do not start the tractor.

2. Press and hold both COUNTER key (A) and NUMBER OF WRAPS key (B) for the BaleTrak™ Pro or hold the COUNTER key and the BALE SIZE key for the BaleTrak™ Plus while turning the monitor-controller to ON. CH201 must be displayed.

3. Release both keys. Baler model is displayed.

4. Press and hold COUNTER key (A) and press the PLUS key until CH202 is displayed.

5. Release COUNTER key (A).

6. To change the displayed value to 0 (twine OFF) or 1 (twine ON), press the PLUS or MINUS key.

7. Turn monitor-controller OFF to enter setting into memory.

8. Turn monitor-controller ON to verify baler model number. Model number is displayed for approximately 2 seconds. If displayed baler model number is incorrect, see Baler Model Program (Channel 201) in this section.

9. Turn tractor key to OFF position and remove key.
