Channel 200/300 Access (Turning On and Off)

Turning On or Off Channel 200 or 300 levels:

•

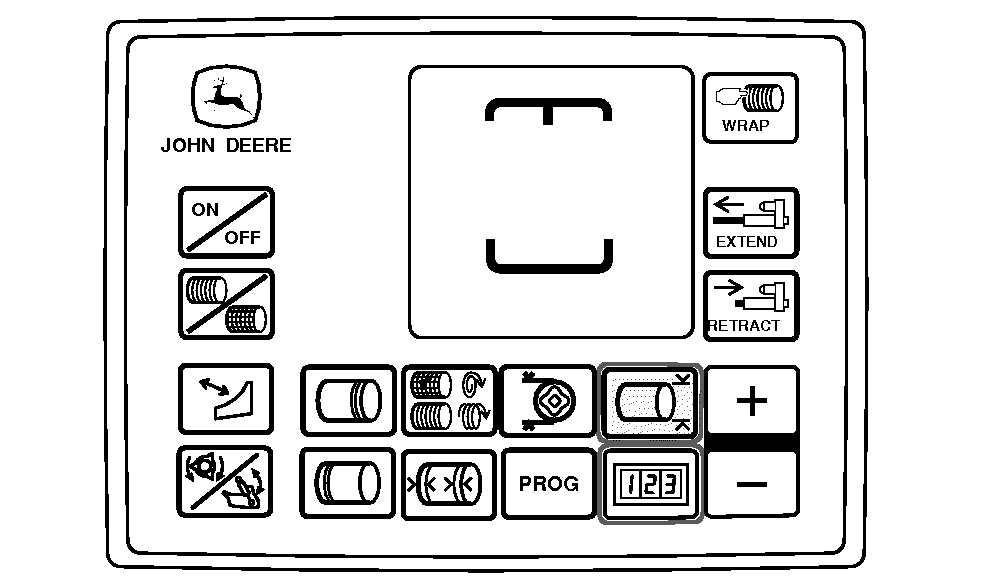

  E84106-UN-18AUG17

  BaleTrak™ Pro Monitor-Controller

  For the BaleTrak™ Pro, hold the COUNTER and NUMBER OF WRAPS keys while turning ON.

---

•

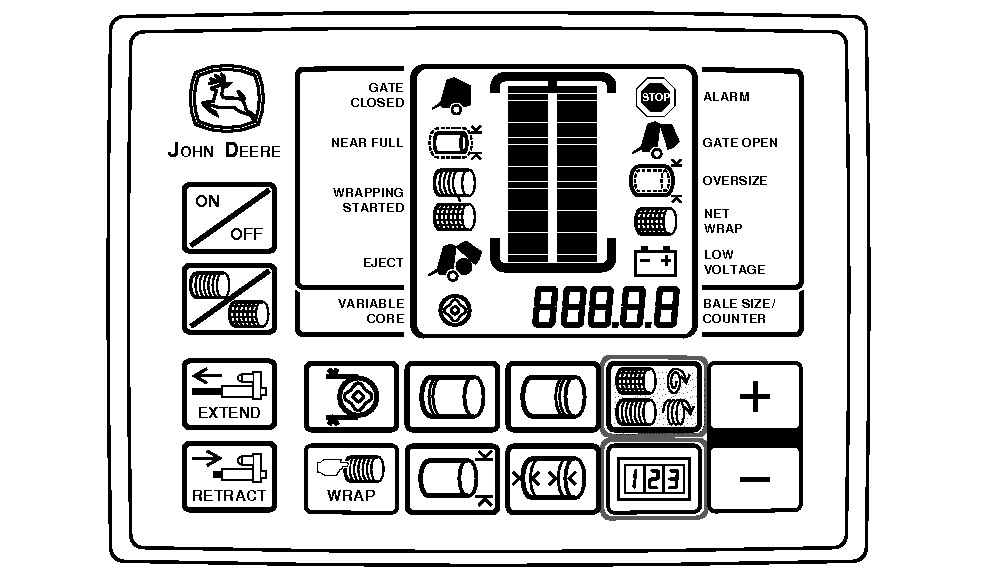

  E84108-UN-18AUG17

  BaleTrak™ Plus Monitor-Controller

  For the BaleTrak™ Plus, hold the COUNTER and BALE SIZE keys while turning ON.

---

To access the different 200 level channels, hold the COUNTER key and the PLUS and MINUS keys simultaneously.
