Install and Adjust Net Wrap Brush

1.
   E52520-UN-26JUN03

   BaleTrak™ Pro Monitor-Controller


   E84427-UN-06SEP17

   BaleTrak™ Plus Monitor-Controller


   E80107-UN-29SEP15

   A - COUNTER Key

   B - EXTEND Key

   C - RETRACT Key

   D - Wire Harness Connector

   Turn tractor key to ON position. Turn monitor-controller ON.

---




2. Ensure that monitor is in NET mode. Turn monitor OFF.

3. Press and hold COUNTER key (A) while turning monitor-controller ON. CH001 appears in the digital display.

4. To advance to CH018, continue to hold the COUNTER key (A) and press PLUS key. Release COUNTER key (A).

5. To move the counterknife to the up position, press and hold the EXTEND key (B).

6. To avoid personal injury from unexpected knife movement, disconnect the net wrap actuator wire connector or power plug when performing adjustment or working in area.

   Turn monitor-controller selector switch to OFF. Turn tractor key to OFF position. Remove key. Disconnect monitor-controller power plug from the power source or disconnect plug at the net wrap wire harness connector (D).

7. Open the net wrap cover.

8. If the knife is bowed, bend brush away from the steel roll between center bolts to maintain 1—3 mm (0.040—0.12 in) clearance.

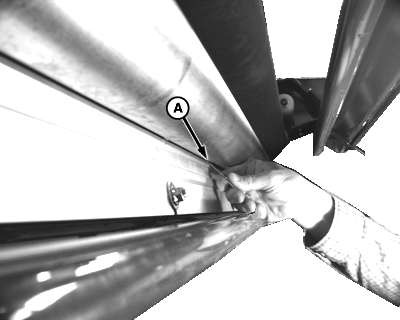

   E53030-UN-12JAN04

   A - Feeler Gauge

   Install brush with bristle holder offset, towards plated roll. Using a feeler gauge (A), set clearance between the steel roll and the holder bracket to dimension.

   Brush-to-Steel Roll	Clearance	1—3 mm (0.040—0.12 in)

---




9. Tighten hardware to specification.

   Knife-to-Brush	Torque	55 N·m (40 lb·ft)

10. To ensure that the clearance remains within the specification, rotate the rolls.

11. Check the net wrap switch adjustment. (See Adjust Net Wrap Switch in this section.)

12. Connect net actuator wire connector.

13. Make sure to move net wrap counterknife fully downward to the home position. If the baler is operated with the counterknife at the up position, the net feeds continuously during baling.

    Turn tractor key to ON position.

14. To move the counterknife fully downward to the home position, press the WRAP key on the monitor-controller.

15. Turn tractor key to OFF position. Turn OFF monitor-controller.

16. Close the net wrap cover.
