Test Liquid Crystal Display (LCD) Panel (Channel 020)

E52529
E52529-UN-10JUN08

BaleTrak™ Pro Monitor-Controller

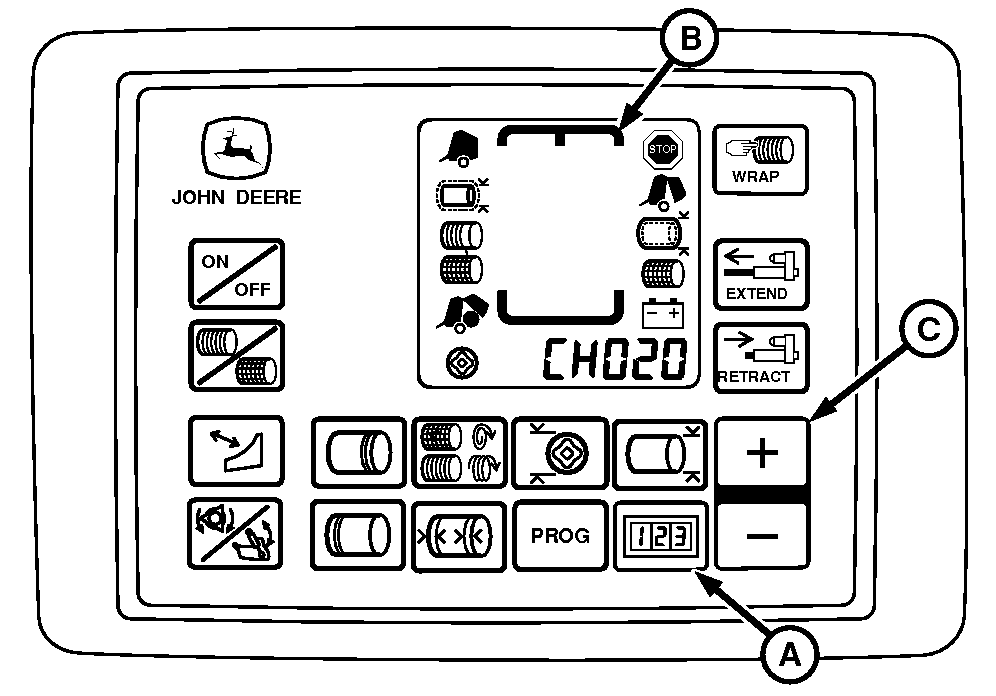

E84257
E84257-UN-30AUG17

BaleTrak™ Plus Monitor-Controller

A - COUNTER Key

B - LCD Panel

C - PLUS Key

Use the following test procedure to check if a segment of the LCD panel has failed.

  1. Turn tractor key to ON position. Do not start tractor engine.

  2. Press and hold COUNTER key (A) while Pressing TWINE or NET key to turn monitor-controller ON.

  3. Continue to hold COUNTER key (A) and press PLUS key (C) until CH020 appears in digital display.

  4. Number of the bale shape indicator bars displayed is 24 bars per side.

    Release keys and view entire LCD panel (B). Make sure that all segments and indicators are displayed. If not, see your John Deere dealer or qualified service provider.

  5. Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.

SF04007,0000FC4-19-20170918
