Bale Size and Bale Shape Sensor Type (Channel 211)

The model number displayed on the monitor-controller must match the baler model number. The twine or net application, slip clutch alert, optional variable core, and precutter features only operate correctly if the numbers match.

1. The type of bale size and the bale shape sensors can be specified by accessing channel 211.


   E84326-UN-31AUG17

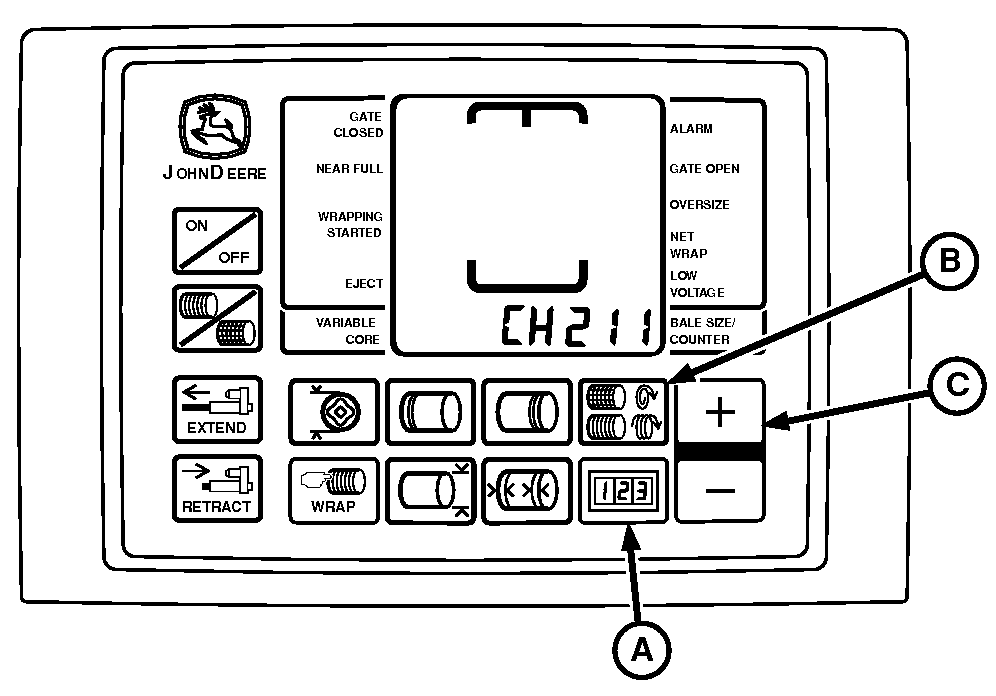

   BaleTrak™ Pro Monitor-Controller Shown

   A - COUNTER Key

   B - NUMBER OF WRAPS Key

   C - PLUS Key

   Turn tractor key to ON position. Do not start the tractor.

---




2. Press and hold both COUNTER key (A) and NUMBER OF WRAPS key (B) for the BaleTrak™ Pro or the COUNTER key and the BALE SIZE key for the BaleTrak™ Plus while turning on the monitor-controller to ON. CH201 must be displayed.

3. Release both keys. Baler model is displayed.

4. Press and hold COUNTER (A) and press the PLUS key (C) until CH211 is displayed.

5. Release COUNTER key (A).

6. To change the displayed value to 1 (all 0 series balers) or 0 (all other balers), press the PLUS of MINUS key.

7. To enter the setting into memory, turn the monitor-controller OFF.

8. To verify the baler model number, turn the monitor-controller ON. Model number is displayed approximately 2 seconds. If the displayed model number is incorrect, see Baler Model Program (Channel 201) in this section.

9. Turn tractor key to OFF position and remove key.
