Enable/Disable Precutter (Channel 209)

The model number displayed on the monitor-controller must match the baler model number. The twine or net wrap application, slip clutch alert, optional variable core, and precutter features only operate correctly if the numbers match.

1. The precutter can be enabled or disabled by accessing channel 209.

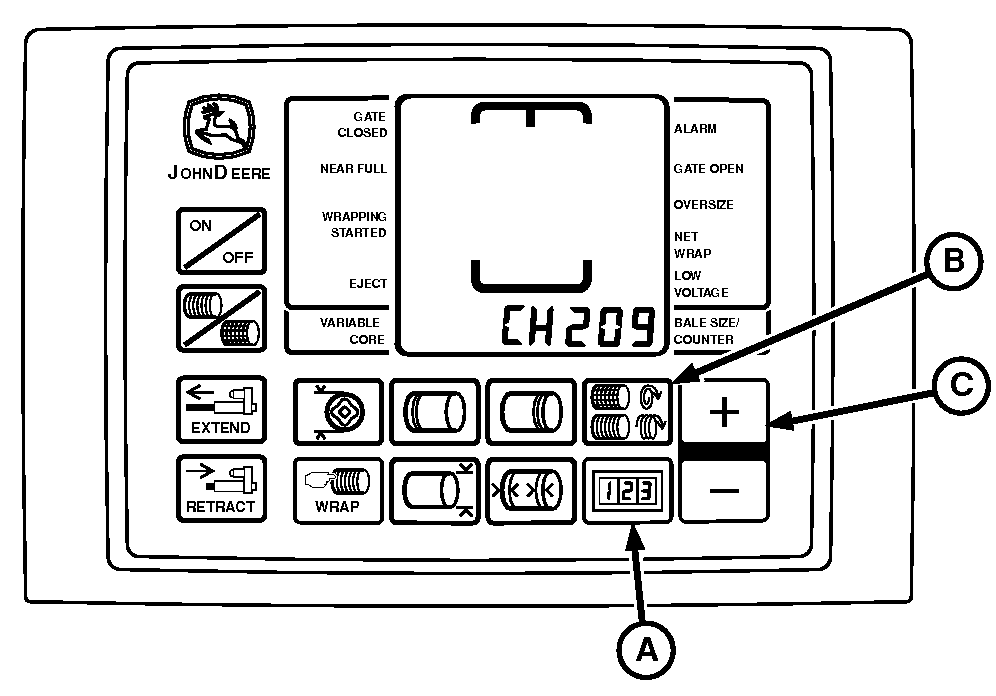

   E84325-UN-31AUG17

   BaleTrak™ Pro Monitor-Controller Shown

   A - COUNTER Key

   B - NUMBER OF WRAPS Key

   C - PLUS Key

   Turn tractor key to ON position. Do not start the tractor.

---




2. Press and hold both the COUNTER key (A) and the NUMBER OF WRAPS key (B) for the BaleTrak™ Pro or the COUNTER and the BALE SIZE for the BaleTrak™ Plus while turning the monitor-controller to ON. CH201 must be displayed.

3. Release both keys. Baler model is displayed.

4. Press and hold COUNTER key (A) and press the PLUS key (C) until CH209 is displayed.

5. Release COUNTER key (A).

6. To change the displayed value to the 1 (Precutter Enabled), or 0 (Precutter Disabled), press the PLUS or MINUS key.

7. To enter the setting into memory, turn the monitor-controller OFF.

8. To verify the baler model number, turn the monitor-controller ON. Model number is displayed approximately 2 seconds. If displayed model number is incorrect, see Baler Model Program (Channel 201) in this section.

9. Turn tractor key to OFF position and remove key.
