Connect Tail or Warning Light Plug to Tractor
If towing tractor is not equipped with an electrical outlet, field installation of Seven-Terminal Auxiliary Electric Kit is required. Kit can be ordered through your John Deere dealer.
Make sure that baler tail and warning lights operate with tractor tail and warning lights and turn signals.

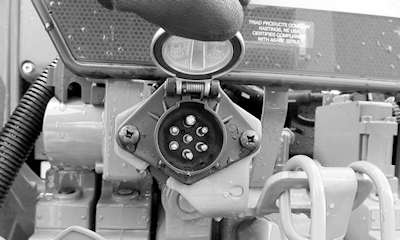

E62265-UN-30MAR12
Tractor Seven-Terminal Outlet
E84488-UN-12SEP17
Baler Tail or Warning Light Plug
A - Baler Tail or Warning Light Plug
Connect tail or warning light plug (A) to seven-terminal outlet on tractor. Check tail or warning light function. (See Light Enhancement Module Operation in Transporting section.)
|
Terminal |
Circuit |
Function |
Wire Color |
|---|---|---|---|
|
1 |
0100 |
Ground |
Black |
|
2 |
Open |
||
|
3 |
0104 |
Left-Hand Turn or Warning Light |
Yellow |
|
4 |
Open |
||
|
5 |
0105 |
Right-Hand Turn or Warning Light |
Green |
|
6 |
0101 |
Tail Lights |
Brown |
|
7 |
Open |
|
SF04007,0000FC9-19-20170912 |
