Adjust Gate Close Switch

1.

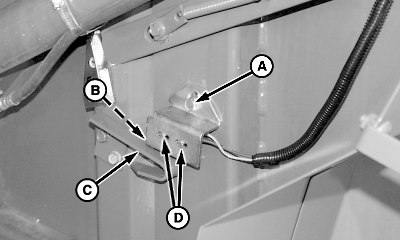

   E48468-UN-21JUL00

   A - Cap Screw

   B - Roller

   C - Ramp

   D - Screw (2 used)

   Close gate. (Gate or tension cylinders must be fully retracted.)

---




2. If necessary, loosen screws (D) and move the switch front-to-rear so the roller (B) is centered on the short leg of the ramp (C).

3. Push switch arm against switch body and measure clearance between roller and ramp. Clearance must meet specifications.

   Roller-to-Ramp	Clearance	0.05—2.00 mm (0.02—0.08 in)

4. Loosen cap screw (A) and adjust switch up-and-down to obtain specified clearance.

5. Confirm switch operation by taking test readings using monitor-controller. (See Test Gate Close and Oversize Bale Switches—Monitor Assisted [Channels 013 and 014] in this section.)
