Adjust Bale Size Link for Maximum Bale Size (Oversize Warning)

1. Adjust bale size switch. (See Adjust Bale Size Switch — Manual Hydraulic Tie in this section.)

2. Close gate.

3.

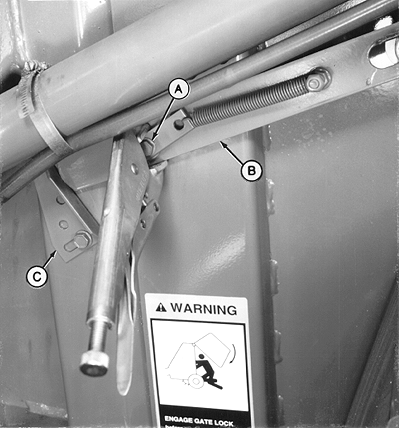

   E39178-UN-30JAN96

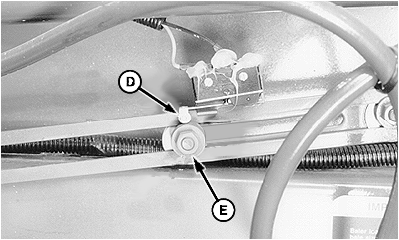

   E56969-UN-24MAR09

   A - Spring Strap Cap Screw

   B - Bale Size Link

   C - Bracket

   D - Switch Roller

   E - Washers

   Clamp link (B) to the cap screw (A) using a pair of locking jaw pliers. (This is to keep the link from moving as the gate is opened.) Position the plier jaws over the cap screw (A) or washers (E) and under the lower edge of the link (B).

---




4. Raise gate fully using tractor hydraulics (tension arm must be raised), then lock gate.

5. Switch roller (D) must be centered on washers (E). If the roller is not centered on washers, measure the distance between center of roller to center of rear washers.

6. Close gate and move bracket (C), forward or rearward, the number previously measured.

7. Repeat steps 2—6, as necessary, until roller (D) is properly centered.

   If unable to attain proper roller position, see your John Deere dealer or qualified service provider.
