Wrap Material Storage

1.

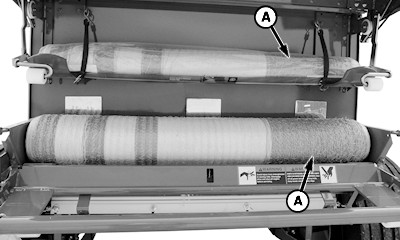

   E67178-UN-03AUG12

   A - Wide Green Stripe

   Load the roll with the wide green stripe (A) for the net wrap on the right-hand side. Load the roll with the striped end of the roll for the B-Wrap on the right-hand side. You do not have to turn it end-for-end later when lowering it into operating position.

---




2.

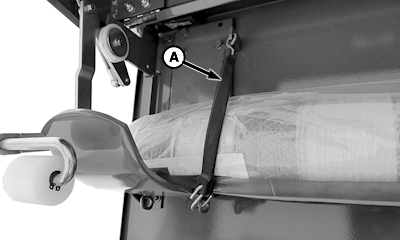

   E67179-UN-06AUG12

   A - Rubber Straps

   To secure roll, stretch rubber straps (A) and hook them to support brackets on right and left-hand sides.

---




3.

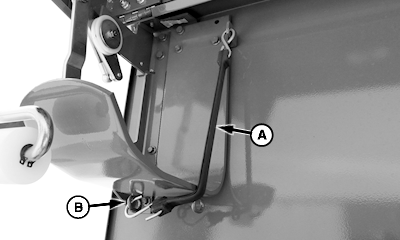

   E67180-UN-03AUG12

   A - Rubber Straps

   B - Support Brackets

   When storage location is empty, make sure that rubber straps (A) are secured to support brackets (B) and not left to hang free.

---




4.

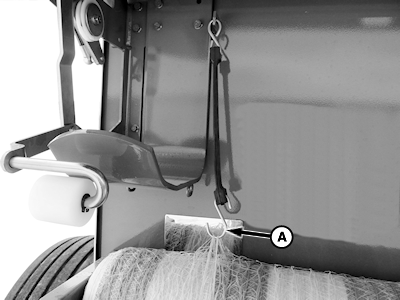

   E67181-UN-03AUG12

   A - S-hook (Hanging Free)

   If the rubber strap is allowed to hang free, the S-hook (A) can snag the net and ruin several hundred feet on working roll.

---
