Remove and Install Bale Ramp (If Equipped)

X9811
X9811-UN-23AUG88

Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high-pressure fluids.

All hydraulic couplers must be clear of debris, dust, and sand. Use protective caps on fluid openings until ready to make connection. Foreign material can damage the hydraulic system.

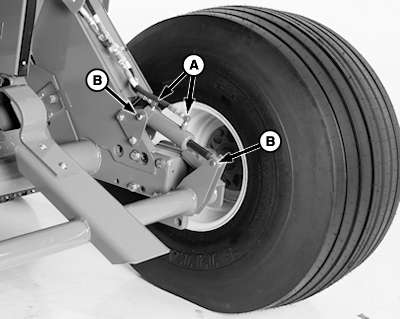

  1. E67379
    E67379-UN-15AUG12

    A - Hydraulic Coupler (2 used)

    B - Pin (2 used)

    With the gate closed, disconnect hydraulic couplers (A) to ramp the cylinder.


  2. Raise gate fully using tractor hydraulics and lock gate open.

  3. Remove pins (B) and remove the hydraulic cylinder from baler.

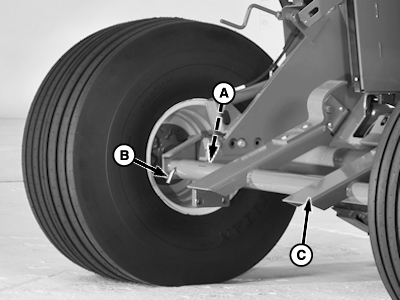

  4. E67380
    E67380-UN-15AUG12

    A - Spring Clip

    B - Pin

    C - Bale Ramp

    Remove spring clip (A) and pin (B).


  5. Remove bale ramp (C).

  6. To reinstall bale ramp, reverse order of removal.

  7. Make sure hydraulic couplers on baler and ramp cylinder are clean before reconnecting hoses.

  8. Cycle bale ramp and gate to remove air from hydraulic hoses before baling.

  9. If necessary, adjust bale ramp. (See Adjust Bale Ramp in Operating the Baler section.)

SF04007,0000FD1-19-20170914
