Install Slow Moving Vehicle (SMV) Sign

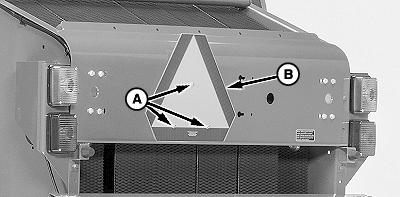

E84498
E84498-UN-18SEP17

A - Cap Screw, M6 x 20 and Nut (3 used)

B - SMV Sign

Without COVER-EDGE™ Net Wrap Unit;

  1. Remove and retain the three M6 x 20 cap screws and nuts (A) and SMV sign (B).
  2. Reinstall sign with the reflective side away from machine (as shown). Fasten sign to the machine using the existing hardware.

With COVER-EDGE™ Net Wrap Unit;

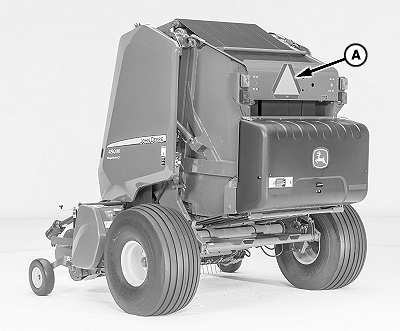

  1. E84497
    E84497-UN-18SEP17

    A - SMV Sign

    Remove the protective covering from the SMV sign (A).

SF04007,0000FD2-19-20170928
