Loading Twine Box

1.
   E53966-UN-09DEC04

   Right-Hand Side


   E26419-UN-12SEP00

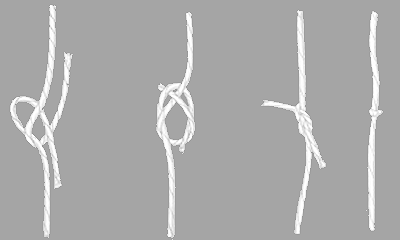

   Plastic Twine (Sheet Bend Knot)


   E7986-UN-12SEP00

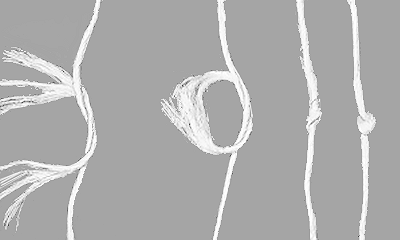

   Sisal Twine (Modified Square Knot)

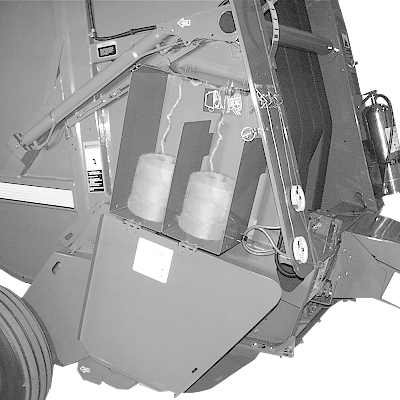

   Open twine compartment door.

---




2. Up to four balls of twine can be loaded into twine box by stacking on top of each other. Two twine balls shown.

   Place one ball of good quality twine in each twine box. Be sure twine is pulled from end of the ball marked “top”.

3. The twine knot must be small enough to pass through the guides and twine arm.

   Stacked twine balls;

   1. Join twine balls by tying the inside end of one ball to the outside of other ball.

      • Tie plastic twine balls together with a sheet bend knot.
      • Tie sisal twine balls together with a square or modified square knot.



   2. Trim loose ends of twine as close to knot as possible.

4. Route twine through guides, as shown.
