Routing Twine

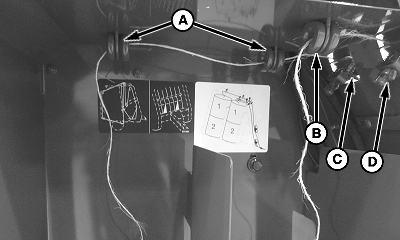

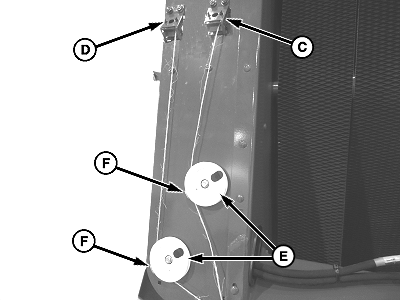

1. Detailed threading diagrams are on inside twine compartment door and right-hand side of tongue.


   E79001-UN-11MAY15


   E79004-UN-11MAY15

   A - Rear Twine Guides

   B - Front Twine Guide

   C - Tension Plate

   D - Tension Plate

   E - Twine Moving Indicator

   F - Twine Guides

   Pull twine from rear-most twine ball through guides (A).

---




2. Pull twine from front-most twine ball through guide (B).

3. Insert twine between tension plates (C) and (D) and pull out through front side.

   If using plastic or small sisal twine, proceed to step 4. if using large sisal twine, proceed to step 5.

4. When using plastic twine and small sisal twine, wrap twine a FULL turn around twine moving indicators (E) and through twine guides (F). Twine should wrap behind strand which comes down from twine box. Check that indicator (E) is free to spin.

5. Wrapping large sisal twine a full turn around the indicator may cause the twine to cling to itself and break or cause excessive twine tension.

   Large Sisal Twine: Route twine around indicators (E) as shown, without making a full turn.

6. Route twine from indicators (E) through guides (F).

7. Twine arms can move unexpectedly. Keep hands out of twine arm path to avoid crushing. Turn off power BEFORE adjusting twine arms or twine cutter mechanism.

   Stay out of the path of twine arms at all times when power to twine arms is ON.

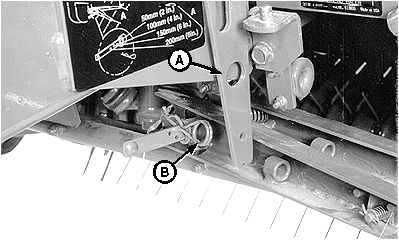

   E47598-UN-07JAN00


   E40126-UN-21JUN96

   A - Twine Arm Stop

   B - Spring Pin

   Remove spring pin (B).

---




8. Lift twine arm stop (A) and move front twine arm away from rear twine arm.

9. Front twine arm is removed for illustration purpose.

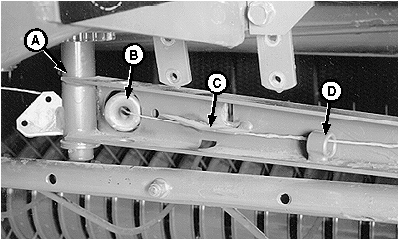

   E40127-UN-25JUN96

   A - Arm Pivot

   B - Guide

   C - Tab

   D - Guide

   Route twine behind arm pivot (A), through guide (B), under “tab” (C) and through guide (D).

---




10. Remove any crop buildup from tension plates before threading twine.

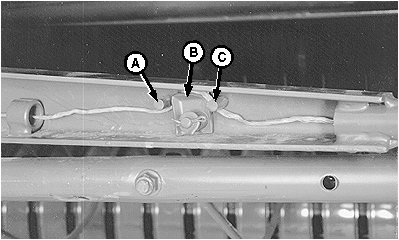

    E40128-UN-21JUN96

    A - Guide Pin

    B - Tension Plate

    C - Guide Pin

    Route twine under guide pin (A), over top of tension plate (B) and under guide pin (C). Pull on twine to get twine between plates.

---




11.

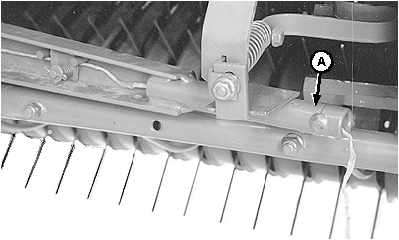

    E40129-UN-21JUN96

    A - Twine Tube

    Pull twine through twine tube (A). Pull on twine to remove slack between guides. Twine pull should be within specifications with twine perpendicular to the twine arm. To adjust twine tension, refer to ADJUSTING TWINE TENSION in Operating the Baler section.

    Twine Tension	Pull (Force)	22—45 N (5—10 lb.-force)

---




12. Cut twine 305—381 mm (12—15 in.) beyond end of twine tube (A).

13. Lift twine arm stop and move front twine arm toward rear twine arm. Install spring pin, removed in earlier step, in one of the four positions for desired twine spacing.

14. Adjust twine spacing.

15. Route twine for front arm.
