Every 30 Hours

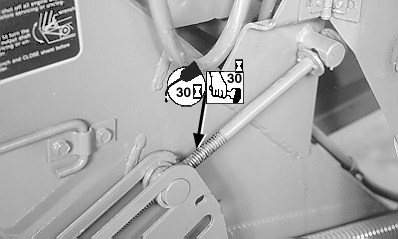

Pickup Lift Crank

E47610-UN-07JAN00

Lubricate crank threads with SAE 30 or heavier oil, or with John Deere EP Moly or an equivalent SAE multipurpose grease.

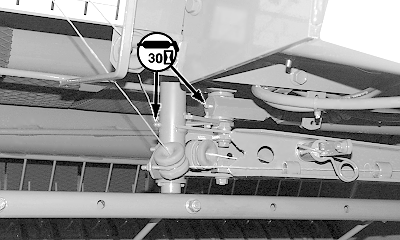

Twine Arm Hub and Hydraulic Cylinder Pivot

Twine arms can move unexpectedly. Keep hands out of twine arm path to avoid crushing. Turn off power BEFORE servicing or adjusting twine arms or twine cutter mechanism.

Stay out of the path of twine arms at all times when power to twine arms is ON.

E47598-UN-07JAN00

E53987-UN-17DEC04

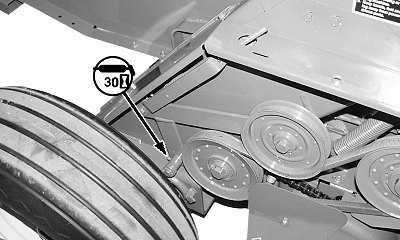

Pickup Drive Idler Pivot

E53989-UN-20DEC04

Right-Hand Side

Shield removed for photographic purpose.

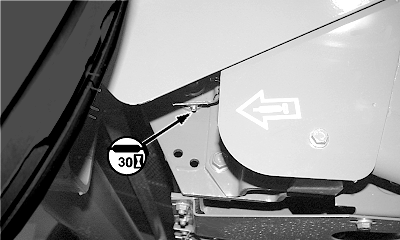

Pickup Idler Arm

E53990-UN-20DEC04

Right-Hand Side

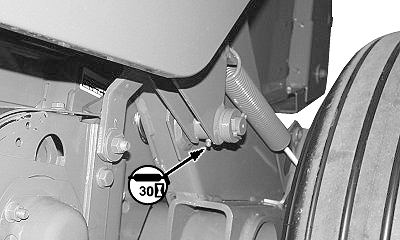

Pickup Lift Bellcrank Pivot

E53988-UN-20DEC04

Left-Hand Side
